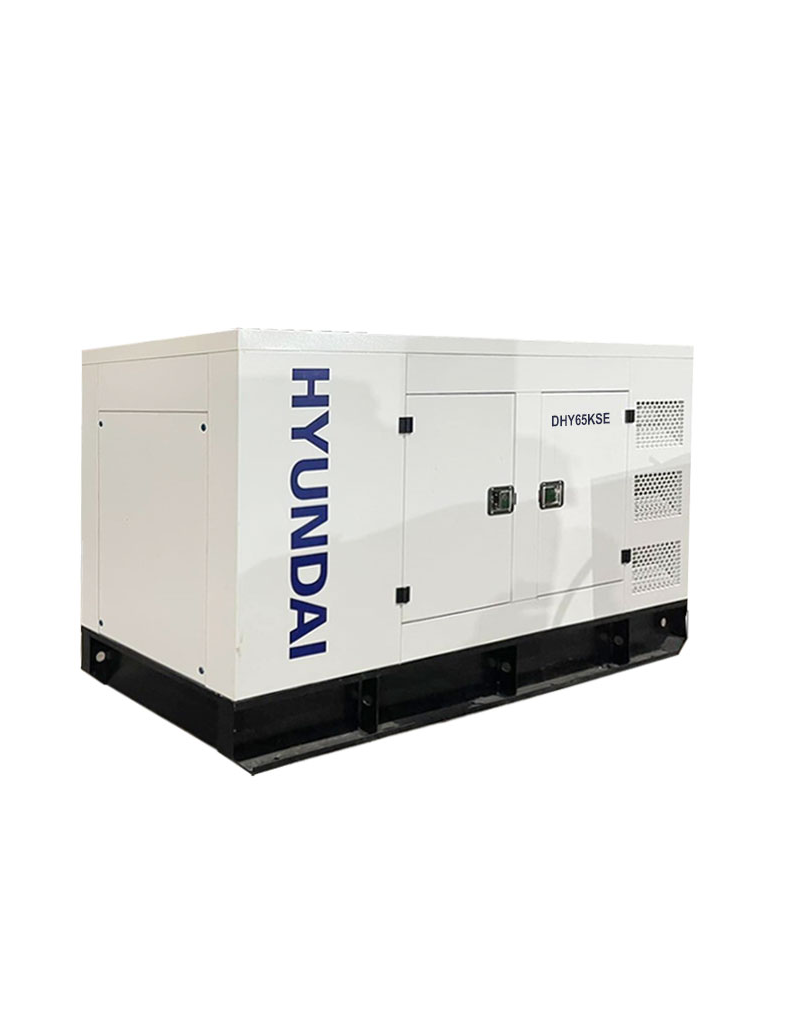

Hyundai DHY65KSE ສາມເຟດ, ເຄື່ອງກໍາເນີດກາຊວນ (60KVA 3 phase)

General Specifications

Prime Power Output: 60 kVA

Standby Power Output: 66 kVA

Frequency: 50 Hz

Voltage: 230/400 V

Current: 95.27 A

ATS Connection Port: Available

Battery: 2 × 60 Ah

Fuel Tank Capacity: 110 L

Coolant Capacity: 18.8 L

Fuel Consumption at 100% Load: 16.13 L/h

Continuous Operating Time at 100% Load: 6.82 hours

Noise Level at 7m: 68 dBA

Total Weight: 1130 kg

Dimensions (L × W × H): 2400 × 910 × 1400 mm

2. Engine

Model: HY4DX23

Power Output (kW @ 1500 rpm): 57 kW

Speed: 1500 RPM

Governing System: Mechanical

Number of Cylinders: 4

Starting Method: Electric Start

Displacement: 4200 cc

Compression Ratio: 17:1

Lubricating Oil Capacity: 13 L

3. Alternator

Model: 224G48

Type: Brushless

Continuous Output: 60 kVA

Power Factor (Cosφ): 0.8

Protection Class: IP23

Insulation Class: H

Voltage Regulation: Automatic, model SX460

4. Control & Monitoring System

Control Panel Model: ComAp AMF20

Monitoring Functions:

Current Display: Yes

Frequency Display: Yes

Phase & Neutral Voltage Display: Yes

Power Factor Display: Yes

Automatic Fuel Level Control: Yes

Oil Pressure Warning: Yes

High Coolant Temperature Warning: Yes

Battery Voltage Display: Yes

Engine Speed Display: Yes

Hour Meter: Yes

Supervision Functions:

Output Relay Monitoring: Yes

LCD Brightness Adjustment: Yes

PIN Code Protection: Yes

Multilingual Support: Yes

5. Alarm & Auto Shutdown Features

High/Low Voltage Alarm: Yes

High/Low Frequency Alarm: Yes

Over/Under Speed Protection: Yes

Low Oil Pressure Alarm: Yes

High Engine Temperature Alarm: Yes

High/Low Battery Voltage Alarm: Yes

Overcurrent Protection: Yes

Start Delay Time Adjustment: Yes
