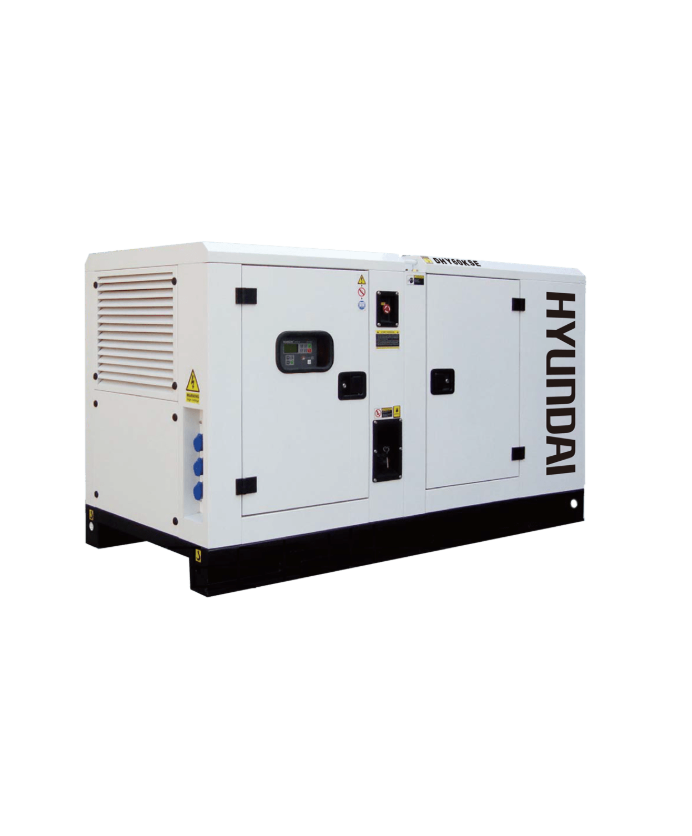

Hyundai DHY60KSE ເຄື່ອງກໍາເນີດກາຊວນ (60Kva/ three-phase)

Continuous power (Kw/KVA): 48/60

Reserve power (KW/KVA): 53/66

Frequency (Hz): 50

Voltage (V): 230/400

Current (A): 86.6

ATS connection port: Yes

Fuel tank (L): 180

Running time at 100% CS load (h): 11

Noise level 7m away (dBA): 70

Overall weight (kg): 1160

Dimensions L×W×H (mm): 2500x950x1250

Capacity (KW/1500 million/mn): 60

Rotation speed: 1500 V/Ph

Speed adjustment: Mechanical

Cooled by water and fan

Cylinder capacity (L): 4.4

Cylinder number/model: 4L

ĐKxHC Pistion: 105×125

Compression ratio: 17.5:01

Lubricating oil capacity (L): 11

Coolant capacity (L): 14.73

Fuel consumption at 100% load (L/h): 16.1

Battery (Ah): 1x12V-16.8Ah

Continuous capacity (KVA): 60

Number of phases: 3 phases

Power factor (Cosφ): 0.8

Voltage regulation: Automatic AVR with AS440

Protection level: IP23

Insulation level: Class H

Excitation system: Automatic

Control panel: ComAp MRS 10

Current intensity indicator: Yes
