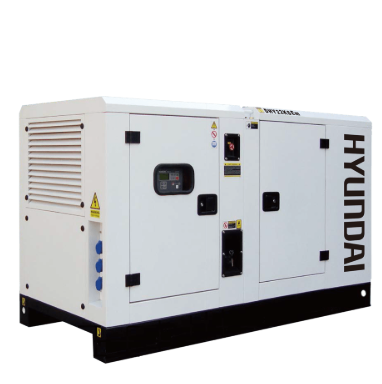

Hyundai DHY22KSEm ເຄື່ອງກໍາເນີດກາຊວນ (20/22 kVA/kW)
Generator
Continuous Power Output (kVA/kW): 20/22
Standby Power Output (kVA/kW): 22/22
Power Factor: 1.0
Operating Frequency: 50 Hz
Voltage: 220 – 230 V
Current: 90.9 A
Phase & Wiring: Single-phase – 2 wires
Starting Method: Electric Start
ATS Connection Port: Yes
Fuel Tank Capacity: 45 L
Fuel Consumption at 100%/75% Load: 9.0/6.75 L/h
Noise Level at 7m Distance: 68 dB
Dimensions (L×W×H): 1800x740x825 mm
Total Machine Weight: 625 kg
Engine
Model: HY4DW92
Starter Motor Power: 3.0 kW
Speed: 1500 RPM
Fuel Type/Fuel Injection: Diesel/Direct Injection
Configuration: 4 Cylinders, Inline
Compression Ratio: 18.5:1
Displacement: 2.545 L
Lubricating Oil Capacity: 8 L
Lubricating Oil Consumption: 0.05 L/h
Cooling System: Water-Cooled
Coolant Capacity: 5.15 L
Exhaust Gas Flow Rate: 6.4 m³/min
Exhaust Gas Temperature: 450°C
Exhaust Back Pressure: ≤ 6.7 KPa
Engine Dimensions (L×W×H): 700x590x680 mm
Engine Weight: 240 kg
Alternator
Model: 184FL
Phase: Single-phase
Continuous/Standby Power Output: 20/22 kVA
Structure: Single Bearing
Power Factor: 1.0
Protection Class: IP23
Insulation Class: H
Voltage Regulation: Automatic AVR SX460
