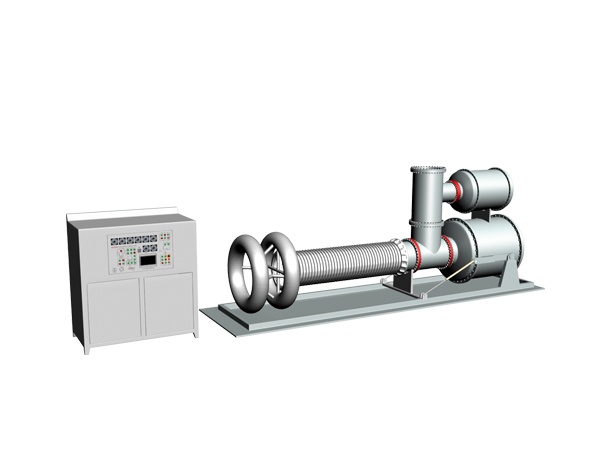

HV HIPOT GIT ຊຸດການທົດສອບແຮງດັນສູງ GIS (50-2000kVA)
Specifications
Voltage grade : 100kV, 200kV, 250kV, 300kV, 500kV, 750kV, 1000kV;
Capacity : 50-2000kVA;
High voltage generated mode: high voltage transformer voltage boost and series resonance(power frequency, frequency conversion);
All methods of boost voltage are one level voltage boost, no need to cascade boost voltage;
Input voltage: 0.35-10kV;
Partial discharge capacity: Rated voltage 3pc (normal environment);
Impedance voltage: 5%;
Temperature rise: no more than 65k (50Hz) when rated current operates 60mins.
Accessories
Basic Accessories: High-voltage generator, High voltage coupling capacitors, High voltage divider, The console and Low-voltage compensation reactor, Partial discharge tester, Inverter power.
Optional Accessories: High voltage transformers, Three phase test switch and insulator interfaces of docking basin different manufacturers.
