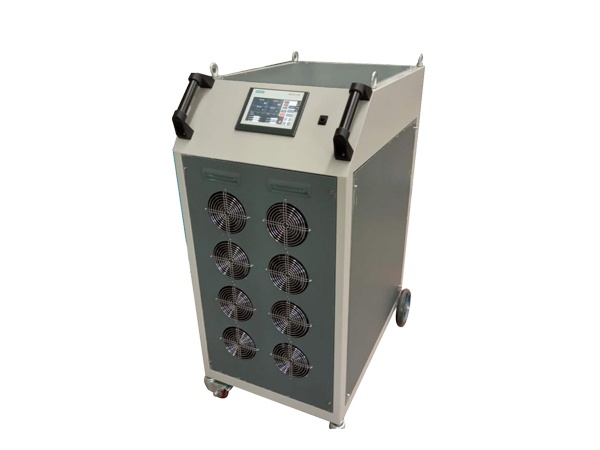

HV HIPOT GDZL-3kA DC ເຄື່ອງກໍາເນີດໄຟຟ້າຂະຫນາດໃຫຍ່ໃນປະຈຸບັນ (0V-12V; 1A-3000A)
Input:
Input method: 3 phase 3 wire + ground wire
Voltage: 380V±10%
Frequency: 50Hz/60Hz±5 Hz
Output:
Rated power: 36kW
Voltage adjust range: 0V-12V
Current adjust range: 1A-3000A
Voltage output accuracy: 1.0%RD+1.0%FS
Current output accuracy: 1.0%RD+1.0%FS
Voltage display accuracy: 2.0%FS
Current display accuracy: 1.0%FS
Source effect: ≤0.1%FS
Load effect: ≤0.1%FS
Display resolution:
Voltage: 0.1V
Current: 100A
Respond time: ≤10ms (10%-90% load change)
Effectiveness: ≥90%
Working characteristics: Output can working long time
Operating display: Color touch screen display and operate
Protective function: Input phase loss, over voltage and under voltage protection, output over voltage protection, output over current protection, etc.
Output interface: RJ45
Safety characteristics:
Insulation resistance: ≥20MΩ
Withstand voltage: 2000V DC test 60 seconds, no arcing, breakdown
Earth resistance: ≤100mΩ
Noise: ≤65dB
Protection level: IP20
Cooling method: Forced air cooling
Working ambient:
Environment temperature: -20℃～35℃
Environment humidity: 10%～90%(non-condensation)
Altitude: ≤2000m
Dimension(L*H*W): 600*1100*700 mm
Weight: About 200kg
