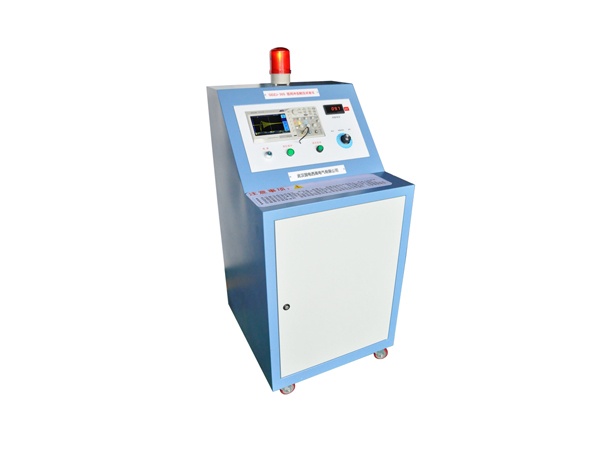

HV HIPOT GDZJ-30S Turn-to-Turn Surge Withstand Tester (0-30kV)
Input voltage:220V±5%; Frequency: 50Hz/60Hz ±2%；
Measurement range:0-30kV,continuous adjustment,±5%
Trigger times:6.25 time/s- 50 times/s
Waveform rising time:0.1-0.5μS
Capacitance error: (+0.3)/(-0.1) µs
Impulse capacitance: 0.01μF -0.1μF
Max output energy: 60J
Power consumption: 1000VA
Insulation resistance:insulation resistance between power input terminal and tester ≥20MΩ
Dielectric strength: 1500V/50HZImin,there is no flashing and breakdown for withstand voltage test.
Temperature:0-40 degree
Relative humidity:≤80% at 40 degree
Waveform capacitance deviation:±3%
Dimension: 650*550*1700mm
Weight: 100kg
Application:turn to turn withstand voltage test for rated voltage 10kV motor
