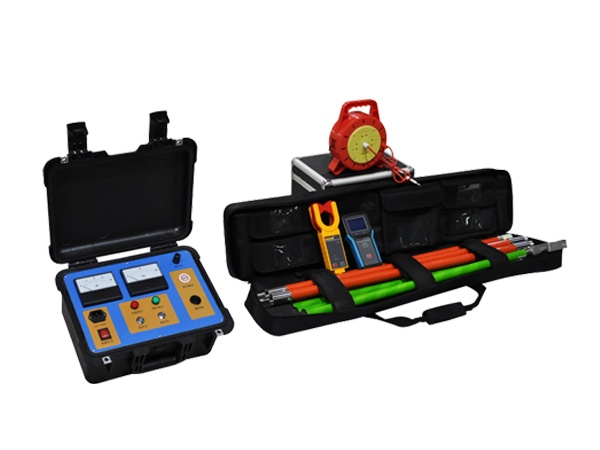

HV HIPOT GDXG-F ລະບົບການຕັ້ງຂໍ້ບົກຜ່ອງຂອງສາຍສົ່ງເທິງຫົວ
Locating Accuracy: 0.2m
Transmitter Output Characteristics:
Output frequency: 1Hz
Open circuit voltage: basic wave effective value: 0~2800V, (DC impulse, peak value 8kV, equivalent to the peak phase voltage of 10kV line)
Short circuit current: base wave effective value 0~35mA (DC impulse, peak value 100mA)
Wireless communication distance between sensor and receiver: not less than 100m
Power Supply:
Transmitter: AC 220V or generator (output power ≥1500W)
Transmitter power: Max. 900W
Sensor: No. 5 alkaline dry battery*3
Receiver: No. 5 alkaline dry battery*5
Dimension:
Transmitter: 417*234*318 mm
Sensor: 180*100*35 mm
Receiver: 205*100*35 mm
Weight:
Transmitter: 16.8kg
Sensor: 0.45kg
Receiver: 0.45kg
Operating Environment:
Temperature: -10℃-40℃
Humidity: 5-90%RH
Altitude: <4500m
