Specification
Measurement range: dew point -80℃--+40℃ or -60℃--+60℃
Accuracy: ±0.5℃(with certain range)
(when the dew point temperature is below 0 ℃, the sensor output is the frost point)
Response time:
63% [90%]
+20→-20℃ Td 5s[45s]
-20→-60℃ Td 10s[240s]
Resolution: dew point 0.1℃ or 0.1ppm
Repeatability: ± 0.2 ℃;
Gas flow: 0.5-0.9L/min (SF6 gas or other gas)
0.1-0.4L/min (H2 gas)
Pressure measurement: 0-1.0Mpa
Probe protection: stainless steel sintering filter
Power supply: 110-220VAC, or Li battery.
Storage temperature: -40--+70℃
Operation temperature: -35--+60℃
Pressure: 0-20bar
Storage: 50pcs data.
With management software, including report printing, electronic quality flow meter.
Dimension: 258*240*88mm
Weight: about 3.5kg
Accessories

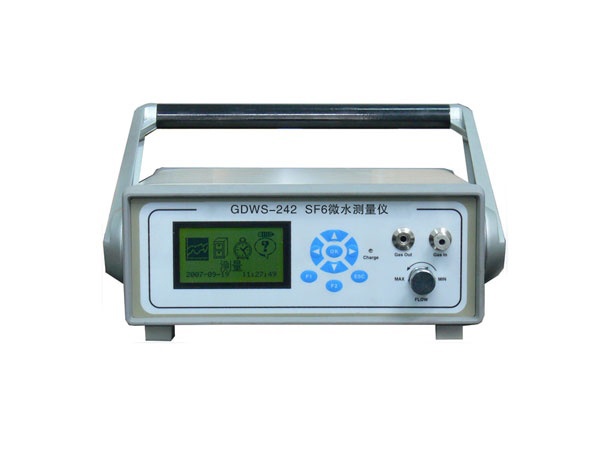

Main Tester x 1 piece
Aluminum carry case x 1 piece
Adapter x 1 piece
JQ04 inlet air pipe x 1 piece
CQ02 outlet air pipe x1 piece
DY03 power cord x 1 piece
TX02 USB wire x 1 piece
User’s Guide x 1 piece
Test Report x 1 piece
