Rated output voltage: 0 - 800kV (AC ) or below.
Output frequency: 20 ~ 300Hz.
Waveform: pure sine wave, THD <1.0%.
Max. capacity: 1000kVA and below.
Duty Cycle: Continuous working time 15mins one time at full power output.
Quality factor: 30-90.
Frequency adjustment sensitivity: 0.1Hz, instability <0.05%.
Power Supply: 380/220V ± 15% / 50Hz ± 5%.
Input voltage (V): 380
Output voltage (kV): 0-260
Capacity (kVA): 520
Application scope:
- 110KV Circuit breaker and bus bar
- 110kV GIS
- 110kV (300 mm²) cable 800m
- 35kv (300 mm²) cable 3km
- 10kV (300 mm²) cable 6km
- 110kv full insulation Transformer

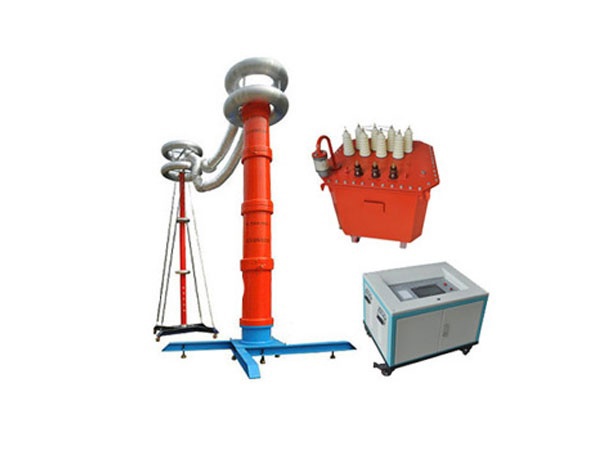

Main configurations:
• 25kW Variable frequency source 1 set
• 25kVA Exciting transformer 1 set
• Reactors 65kV/2A 4sets
• Capacitive divider 300 kV
