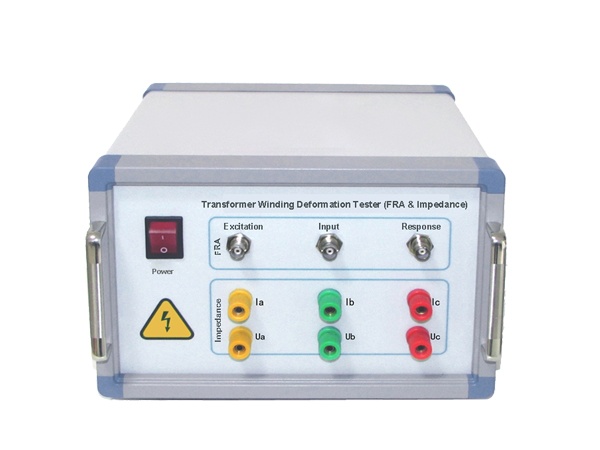

HV HIPOT GDRB-F Transformer Winding Deformation Tester (SFRA & Impedance Method)
Test speed: 1~3mins (for single phase winding)
Output voltage: Vpp-25V, adjusting automatically in test
Output impedance: 50Ω
Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)
Frequency sweep scope: 10Hz~2MHz (standard); 10Hz~30MHz (optional)
Frequency accuracy: 0.001%
Frequency sweep manner: Linear or logarithmic, frequency scan interval and number of sweep points are set freely.
Curve display: Amplitude-frequency curve (phase-frequency curve, optional)
Width of measuring dynamic range: -100dB~20dB
Supply voltage: AC100-240V, 0-400Hz
Weight: 3kg
