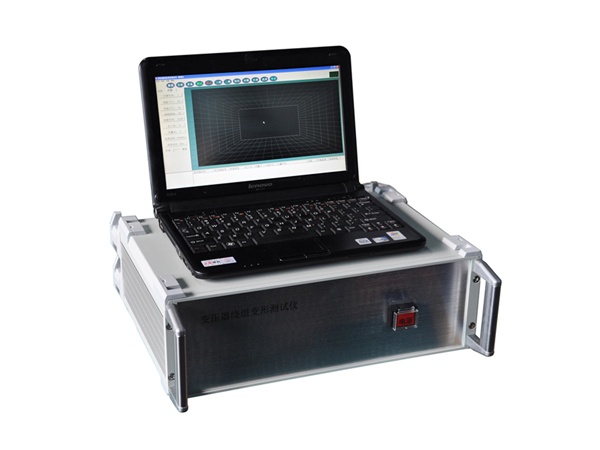

HV HIPOT GDRB-B Transformer Winding Impedance Tester (10Hz-10MHz)
Scan mode:
1. Linear scanning distribution
Scanning measurement range: (10Hz) - (10MHz) 40000 scanning point, resolution 0.25kHz, 0.5kHz and 1kHz
2. Segment frequency scanning measurement distribution
Frequency scanning measurement range:
(0.5kHz) - (1MHz), 2000 scanning points ;
(0.5kHz) - (10kHz)
(10kHz) - (100kHz)
(100kHz) - (500kHz)
(500kHz) - (1000kHz)
Other technical parameters:
1. Amplitude measurement range: (-120dB) to (+20 dB)
2. Amplitude measurement accuracy: 0.1dB
3. Scanning frequency accuracy: 0.005%
4. Signal input impedance: 1MΩ
5. Signal output impedance: 50Ω
6. Signal output amplitude: ± 20V
7. Test repetition percent: 99.9%
8. Measuring instruments dimensions (LxWxH) 350X300X140 (mm)
9. Instrument’s aluminum box size (LxWxH) 390X310X340 (mm)
10. Overall weight: 13Kg
