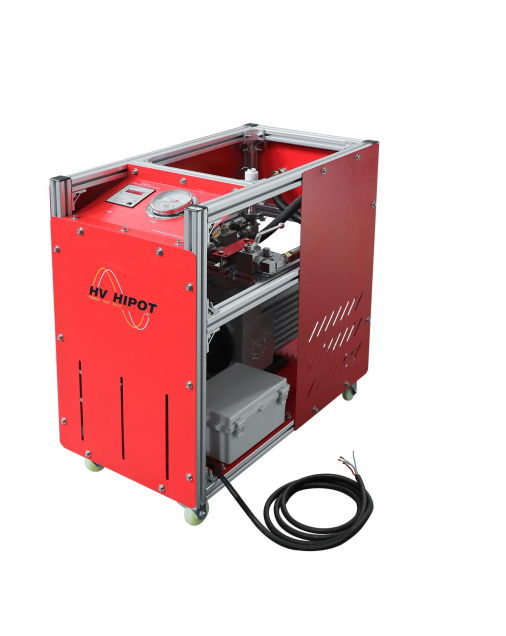

HV HIPOT GDQC-55A ເຄື່ອງດູດຝຸ່ນ ແລະ ເຕີມອາຍແກັສ SF6 (55 m³/h, 10 Pa, 5 m³/h, 30 Pa)
Cooling mode: air-cooled vacuum pump, continuous running
Working principle: high pressure valve, vacuum gauge assisted vacuum pump to vacuum.
Speed rate of Vacuum pump: 55m3/h.
Limit vacuum (Pa): 10
Initial pressure: 53kPa
Final pressure: 30Pa
Recharge rate: 5 m3/h
Vacuum measurement method: pointer vacuum gauge
Vacuum gauge measuring range 0-103pa.
Yearly leak rate: ≤1%
Working environment temperature: upper limit 40℃, lower limit 5℃ , -10℃, -30℃
Noise dB(A): ≤60.
Vacuum degree 0.1mbar/10pa
Power supply: 380V±10%, 50Hz, power 1.5kW
SF6 special ball valve: High pressure vacuum dual purpose ball valve (13.5MPa, no leakage)
Vacuuming port: M20*1.5, can be selected.
Factory equipped with steel wire braided rubber hose:
M20*1.5-M30*1.5, 1.5M, 1piece.
G5/8D - M30*1.5, 1piece.
Size: 1000*580*700mm, weight about 66kg
