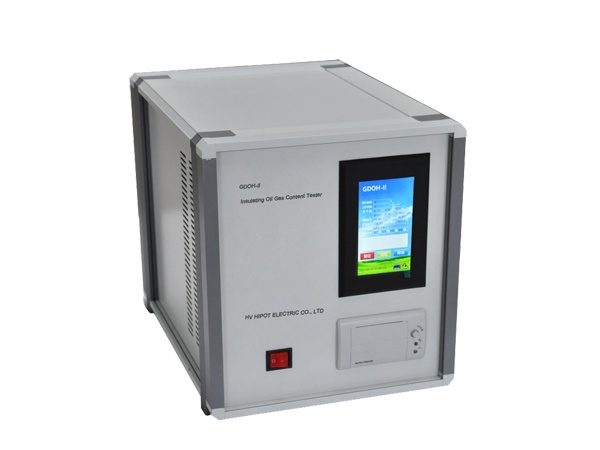

HV HIPOT GDOH-II Insulating Oil Gas Content Tester
High-precision electronic differential pressure sensor: Resolution is not less than 0.1%.
Minimum detection limit: No more than 0.2%.
Accuracy: The relative error of the repeated measurement results should not exceed the following values:
- Gas content in oil (volume fraction), %: < 0.5; 0.5~1.0; 1.0~3.0; >3.0
- Relative error,% : 10; 8; 5; 3
Degassing room temperature control range: 5℃ to 70℃ above room temperature
Working power supply: AC 220V±10%, 50Hz
Dimension: 450*325*350 mm
Weight: About 20kg
Accessories
Tester x 1 set
Power cord x 1 piece
Vacuum pump & connector x 1 set
3mm stainless steel pipe x 1.5m, 0.5m
Syringe connector x 1 set
Fuse 10A x 3 pieces
M8×1 nut x 10 pieces
Seal x 10 pieces
Syringe bracket x 1 piece
1mL calibration syringe x 1 piece
Rotary vane vacuum pump x 1 set
Instruction Manual x 1 copy
Product certification x 1 copy
Factory test report x 1 copy
Packing list x 1 copy
