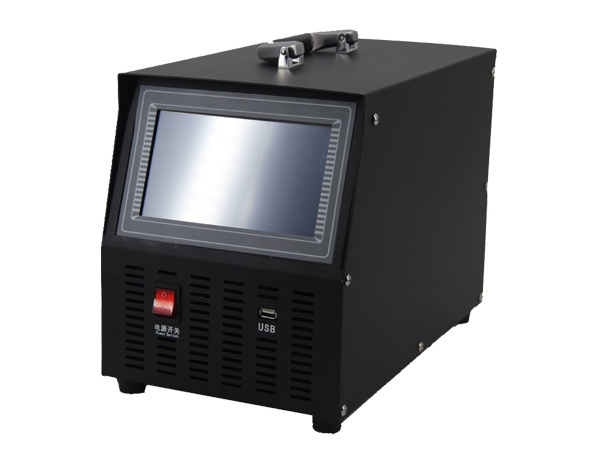

HV HIPOT GDKH-10 Lead Acid Battery Generator (1.5~16V)
Output voltage: 1.5~16V
Output current: 2V battery: 0~100A; 4/6V battery: 0 ~60A; 12V battery: 0~30A
Single cell voltage resolution: 2V: 0.001V; 6V/12V: 0.001V
Working mode: Single machine use, constant current mode
Protection performance: Over voltage protection: LCD prompt;
Over current protection: LCD prompts;
65°C overheat protection: LCD prompt, buzzer alarm;
Voltage test accuracy: 0.5%
Current test accuracy: 1%
Current control accuracy: 0.1A
Data storage capacity: 2Gbit FLASH
Heat transfer: Forced air cooling
Temperature: Working range: -5~50°C
Storage temperature: -40~70°C
Humidity: Relative humidity 0~90% (40±2°C)
Altitude: 4000 meters
Noise: <60dB
Voltage: Single-phase three-wire system 220V AC (–20% to +30%), frequency: 45 to 65Hz;
Withstand voltage test: Input - Case: 2200Vdc 1min
Input-output: 2200Vdc 1min
Output - Case:700Vdc 1min
Safety: Meet EN610950
AC input: public socket for 1~1.5mm2 cable
DC output: 25mm2 cable quick connector (red positive black negative)
