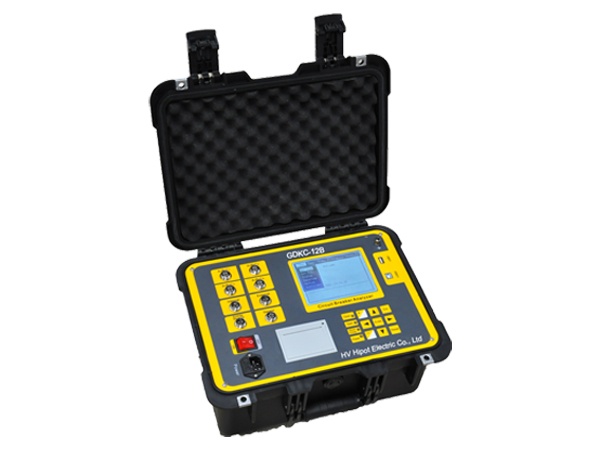

HV HIPOT GDKC-12B ເຄື່ອງກວດຕັດວົງຈອນແຮງດັນສູງ
Usage Environment
- Input Power: 230V±10%, 60Hz±10% Air Pressure: 86-106kpa
- Temperature: -10-40℃ Humidity: ≤80%RH
Safety Performance
- Insulation Resistance>2MΩ
- Dielectric Strength: Shell can withstand power frequency voltage 1.5kV at 1 minute without flash-over and arcing.
The Basic Parameters
a. Time: Range: 25000.0ms; resolution: 0.01ms
Error:
- 0.01ms ± 2digit within 250ms
- 0.1ms ± 2digit within 2500ms
- 1ms±2 digit within 25000ms
b. Closing resistor: Range: 10KΩ; resolution: 1Ω
c. Velocity: Range 20.00m/s; resolution 0.01m/s
Error: ±0.1m/s± 1digit within 0-2m/s
±0.2m/s± 1digit above 2m/s
d. Travel:
Vacuum breaker: Range: 50.0mm; Resolution: 0.1mm; Error: 0.1±1mm
SF6 circuit breaker: Range: 300.0mm; Resolution: 1mm; Error: 0.1±1mm
Oil circuit breaker: Range: 600.0mm; Resolution: 1mm; Error: 0.1±1mm
e. Current: range 20.00A; resolution 0.01A
f. Output power: DC0-300V digital adjustable / 20A(instantaneous working), resolution 1V.
g. PC interface: RS232 port, USB port.
h. Dimensions: 360mm (L)* 280mm (W)* 300mm (H)
i. Weight: 9kg
