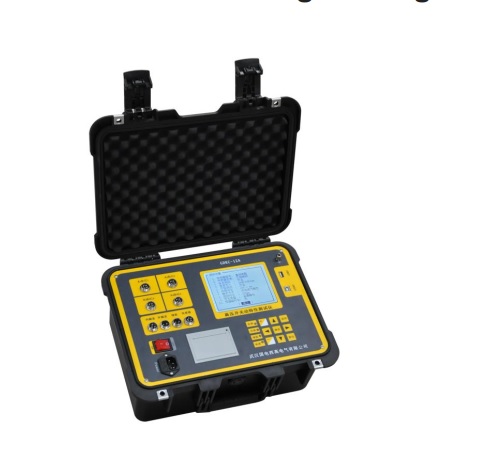

HV HIPOT GDKC-12A Circuit Breaker Analyzer

ຜູ້ຜະລິດHV HIPOT(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelGDKC-12A

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Features

Time: the open/close time, in phase synchronization, phase-to-phase synchronization of 12contacts.
Reclose: close-open, open-close, open-close-open time for each contact.
Bounce: Close bounce time, times, process and waveform of each contacts.
Velocity: Velocity at contact touch, maximum speed, time-range characteristic curve.
Travel: Total travel, open travel, over travel, travel overshoot, bounce amplitude.
Current: open/close current, current waveform diagram of the open/close coil.
Operation voltage: built-in DC30~250V/20A digital, adjustable power source of breaker, automatically complete LV action test of circuit breaker and measure action voltage value of circuit breaker.
It is suitable to test the mechanism parameters of all types of SF6 circuit breaker, GIS combination electric equipment, vacuum circuit breaker, oil circuit breaker.
Strong anti-interfere ability. It also can easily test and accurately measure even interbus is live in 500kV substation.
With universal velocity sensor(optional), linear velocity sensor, rotary sensor, easy to install.
Only one time action to obtain all data and corresponding waveform of breaker mechanism test.
Storage test data, built-in real-time clock, which is convenient to save test date and time.
LCD screen display, with contrast adjustment and power-off memory.
Built-in printer, to get all data and diagram at any time quickly.

Specifications

1.1 Using Environments
Input Power: 220V± 10% 50Hz± 10% Air Pressure: 86~106kpa
Temperature: -10~40 degree
Humidity: 80%RH

1.2 Safety Performance
Insulation Resistance>2MΩ
Dielectric Strength: Chassis can withstand voltage 1.5kv and power frequency for 1 minute without flash-over and arcing.

1.3 The Basic Parameters

A. Time: Range 25000.0ms resolution 0.01ms
Error 250ms 0.01ms ± 1digit
2500ms 0.1ms ± 1digit
25000ms 1ms ± 1digit
Same period
B. Velocity: Range 20.00m / s resolution 0.01m / s
Error 0-2m / s ± 0.1m / s ± 1digit
Above 2ms ± 0.2m / s ± 1 digit

C.Range:

Range
Resolution
Error
Vacuum breaker
50.0mm
0.1mm

0.1±1digit
SF6 circuit breaker
300.0mm
1mm
Oil circuit breaker
600.0mm

D. Current: Range 20.00A resolution 0.01A
E. Output power: DC0 ~ 300V digital adjustable / 20A (instantaneous work), resolution 1V.
F. Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
G. Weight: 10kg
