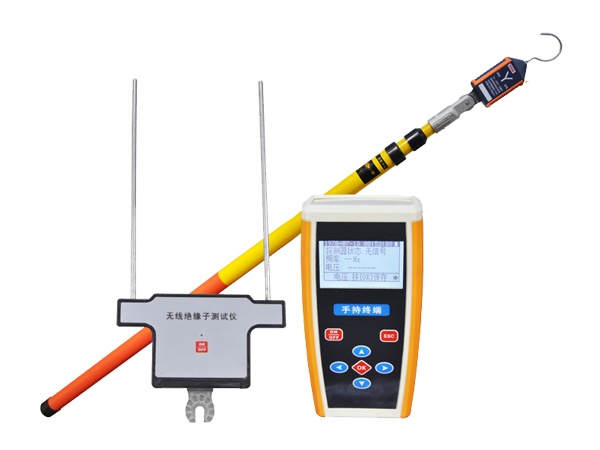

HV HIPOT GDJW-40B ເຄື່ອງທົດສອບ insulator ໄຮ້ສາຍ (35-1000kV)
Working voltage: 35 - 1000kV (applicable for different voltage grades)
Voltage measurement range: 0 - 40kV (can be customized)
Measurement error: ≤±1%
Resolution: 0.01kV
Sampling rate: 10 times/second
Working current: ≤ 120mA (for hand-held terminal), ≤ 40mA (for detector)
Power supply:
2pcs 1.5V AA size dry battery (for hand-held terminal)
2pcs 1.5V AAA size dry battery (for detector)
Working time: More than 12 hours (continuously)
Line-of-sight propagation distance for detector and handheld terminal: ≤100m (with full power)
Display: LCD display, legible in the sunlight.
Working temperature: -35℃~+60℃
Storage temperature: -40℃~+65℃
Relative humidity: ≤ 90%RH (no condensing)
