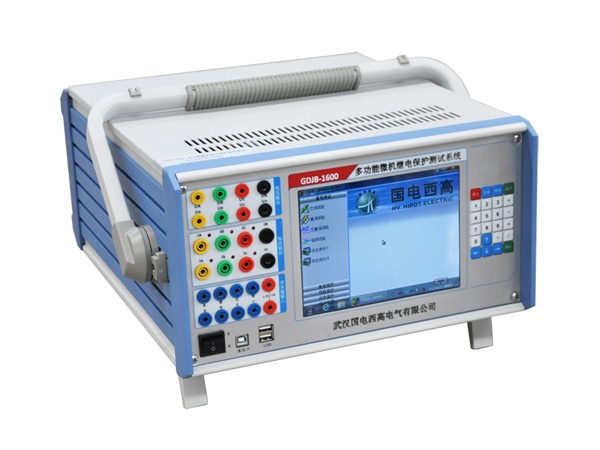

HV HIPOT GDJB-1600 ເຄື່ອງທົດສອບການປົກປ້ອງ Relay (3 phase; 6 phase)
Rated output:
- Frequency error: <±0.01Hz
- Phase error:<±0.2°
- Waveform distortion: <±0.3% (fundamental wave)
- Time error: <40µs
- Output frequency: 20～1000Hz
Power voltage: Allowable range: AC220V±10%，50Hz±10%
Ambient temperature:
- Use range: 0～40℃
- Storage range: -20～70℃
AC source
Current:
- 6 Phase current output (RMS): 0～30A/phase
- 3 Phase current output (RMS): 0～60A/phase
- 6 parallel current output (RMS): 0～180A
- Long-term allowable working value of phase current (RMS): 10A
- Allowable working time of 6 parallel current 180A: 10s
- Accuracy: <±0.2%
- Max. Output power of phase current: 300VA
- Max. Output power of 6 parallel phase current: 1000VA
- Harmonic frequency: 1～20 times
Voltage: - Phase voltage output (RMS): 0～120V
- Line voltage output (RMS): 0～240V
- Accuracy: <±0.2%
- Phase/Line voltage output power: 80VA/100VA
- Harmonic frequency: 1～20 times
DC source
Current:
- Output range: 0～±10A/phase
- Accuracy: <±0.5%
- Max. Output load voltage: 20V
Voltage:
- Phase voltage output amplitude: 0～±160V
- Line voltage output amplitude: 0～±320V
- Accuracy: <±0.5%
- Phase/Line voltage output power: 70VA/140VA
Time measurement: Test range: 0.1ms～9999s
Accuracy: <0.1mS
8 Binary input: Idle contact: 1～20mA, 24V（DC）
Electric potential contact: ”0”: 0 ～ +6V; “1”: +11 V ～ +250 V
4 Binary output: DC: 220 V／0.2 A: AC: 220 V／0.5 A
Dimension: 410mm ×360mm ×200mm
Weight: 23kg
