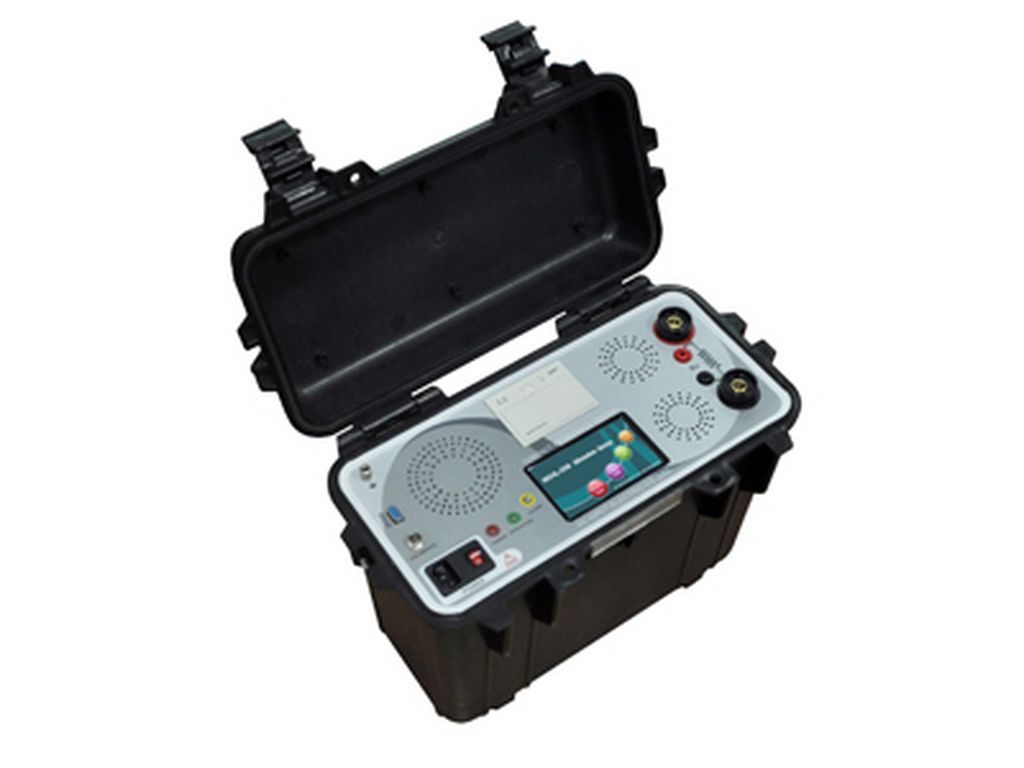

HV HIPOT GDHL-200 Contact Resistance Tester (Automatic)

Name: HV HIPOT GDHL-200 Contact Resistance Tester (Automatic)
Brand: HV HIPOT

ຜູ້ຜະລິດHV HIPOT(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelGDHL-200

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Function: used to measure the contact resistance of the cutter, wire and cable resistance, welds ...

Measuring range: 0.01uΩ ～ 80mΩ

Current: 25, 50, 100, 200 A

Accuracy: 0.5% RD ~ 1% RD (depending on range)

Resolution: 0.01uΩ, 1uΩ, 10uΩ

Memory 256 sets

Input voltage: AC220V ± 10%, 50HZ ± 2%

Protection level: IP67

Size: 365 * 165 * 310mm

Weight: ＜ 8kg （exclude leads bag）

Continuous and on-time testing is customizable

GDHL-200 Automatic Contact Resistance Tester is designed to measure circuit contact resistance of high/low voltage switch,power cable and wires, and weld joint. It is suitable for high current, micro resistance measurement. This product is widely used in electrical manufacturing department, power operation department, research institute and universities.

Application

High,middle and low voltage circuit breakers

High,middle and low voltage disconnecting switches

High-current bus bar joints

Cable&Welding joints

It is suitable for high current, micro ohm measurement.

Features

Output high-current continuously.
Four current positions, and one customized current position for option.
Two test models: Routine test and Switch Resistance Test.
Test time can be customized.
High speed thermal printer.
Interface friendly, can display resistance, current, voltage, time, status and notes. High intelligence and good safety.
Data storage and history data browsing functions, 256 sets of data can be saved.
The number of test sample and operator can be set, easy to classify the test results.
Connection diagrams and cautions.
History data and switch resistance value can be inquired.
Large measuring range and can be customized.
Ambient and internal temperature can be test to protect the instrument.
Standard resistance value is set, to calculate the deviation and compare the test resistance value with standard value.
RS232 interface. (reserved)

Specifications

Input voltage: AC220V±10%,50HZ ± 2%
Working temperature: -10～+50℃
Test temperature: 15~25℃
Storage temperature: -20℃～70℃
Relative Humidity: ≤85%RH without dew
Cooling by air
Protection: IP67
Insulation performance:＞20MΩ to ground
Overall dimension: 365*165*310mm
Weight: ＜8kg（exclude leads bag）
Continuity test and test time to be customized.
Portable

GDHL-200
Current（A）	Measuring range	Accuracy		Max.resolution
25	0.01uΩ～80mΩ	0.01uΩ～49.99uΩ	1.0%RD+0.2%FS	0.01uΩ
		50.00uΩ～7.999mΩ	0.5%RD+0.1%FS	0.01uΩ
		8.000mΩ～80mΩ	1.0%RD+0.2%FS	10uΩ
50	0.01uΩ～40mΩ	0.01uΩ～4.99uΩ	1.0%RD+0.2%FS	0.01uΩ
		5.00uΩ～3.999mΩ	0.5%RD+0.1%FS	0.01uΩ
		4.000mΩ～40mΩ	1.0%RD+0.2%FS	1uΩ
100	0.01uΩ～20mΩ	0.01uΩ～1.999mΩ	0.5%RD+0.1%FS	0.01uΩ
100	0.01uΩ～20mΩ	2.000mΩ～20mΩ	1.0%RD+0.2%FS	1uΩ
200	0.01uΩ～10mΩ	0.01uΩ～999.99uΩ	0.5%RD+0.1%FS	0.01uΩ
200	0.01uΩ～10mΩ	1.000mΩ～10mΩ	1.0%RD+0.2%FS	1uΩ
