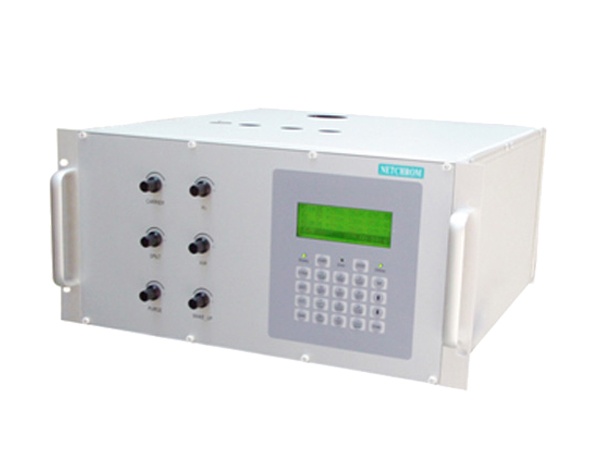

HV HIPOT GDFJ-VI ເຄື່ອງວິເຄາະອາຍແກັສທີ່ລະລາຍແບບພົກພາ
FID (flame ionization detector)
Detection limit: Mt≤3×10-12g/s (Hexadecane/isooctane)
Baseline noise: ≤5×10-14A
Baseline shift: ≤1×10-13A/30min
Linear range: ≥ 106
TCD (thermal conductivity detector)
Sensitivity: S≥3500mV•ml/mg (conventional); 5000mV•ml/mg (highly sensitive)
Baseline noise: ≤10μV
Baseline shift: ≤30μV/30min
Linear range: ≥104
Temperature control index
Temperature control part: Range
Column box: 4~ 450℃ above room temperature, accuracy ±0.1℃
Packed column injector: 4~ 450℃ above room temperature, accuracy ±0.1℃
FID Detector: 4~ 450℃ above room temperature, accuracy ±0.1℃
TCD Detector: 4~ 450℃ above room temperature, accuracy ±0.1℃
Ni nickel catalyst reformer: 4~ 450℃ above room temperature, accuracy ±0.1℃
Other parameters
Dimension: 420*280*300mm
Weight: <15kg
Power supply: AC220V±10%, 50Hz
Accessories
Name Specification Qty.
Portable DGA: GDFJ-VI x 1 set
Chromatography workstation: Insulating oil special edition x 1 set
Miniature Full Automatic Oscillator: x 1 set
High Purity Nitrogen: 2L, 99.999%, Aluminum alloy bottled x 2 bottles
High Purity Hydrogen: 2L, 99.999%, Aluminum alloy bottled x 1 bottle
Standard Gas: 2L, 7 Components, Aluminum alloy bottled x 1 bottle
