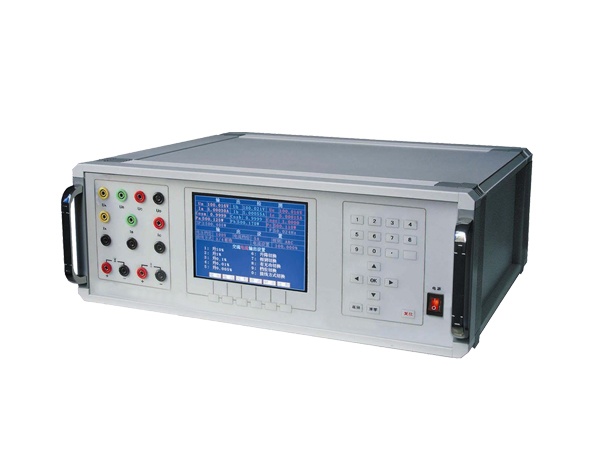

HV HIPOT GDDO-20E ອຸປະກອນການສອບທຽບວັດໄຟ AC/DC
AC voltage output
• Voltage range: 50, 100, 200, 400, 800V
• Adjustment range: (0~120)%RG (RG is measurement range)
• Fineness adjustment: 0.005%RG; accuracy: 0.02%RG
• Stability: 0.01%/1min; THD: ≤0.5% (non-capacitive load); output load: 20VA per phase
AC current output
• Current range: 0.5A, 1A, 5A, 10A, 20A
• Adjustment range: (0-120)%RG (RG is measurement range)
• Fineness adjustment: 0.005%RG; accuracy: 0.02%RG
• Stability: 0.01%/1min; THD: ≤0.5% (non-capacitive load); output load: 20VA per phase
Power output
• Accuracy of active power: 0.02%RG
• Accuracy of reactive power: 0.1%RG
• Stability: 0.01%/1min
Phase output
• Adjustment range: 0°～359.99°
• Resolution: 0.01°
• Accuracy: 0.05°
Power factor
• Adjustment range: -1～0～+1
• Resolution: 0.0001
• Accuracy: 0.05%
Frequency
• Adjustment range: 45~65Hz
• Resolution: 0.001Hz
• Accuracy: 0.002Hz
Three phase voltage & current symmetry, phase symmetry
• Voltage and current symmetry: ＜0.03%
• Phase symmetry: 0.05°
Voltage & current harmonic output
• Harmonic order: 2nd～31th
• Harmonic content: 0～39%
• Harmonic phase: 0°～359.99° adjustable
DC voltage output
• Voltage output: 75mV, 50V, 100V, 300V, 500V, 1000V
• Adjustment range: 0~110％RG (RG is measurement range)
• Fineness adjustment: 0.005％RG; accuracy: 0.02% RG
• Stability: 0.01％FS/min
• Max. output power: 20W
DC current output
• Current range: 0.5A, 1A, 3A, 5A, 10A, 20A
• Adjustment range: 0~110％RG (RG is measurement range)
• Fineness adjustment: 0.005％RG; accuracy: 0.02%RG
• Stability: 0.01％FS/min
• Max. output power: 20W
General parameters
• Power supply: 220V±10%, 50Hz±5%
• Use condition: 20℃±10℃, ≤75%RH
• Size: 450*450*170mm
• Weight: about 20kg
