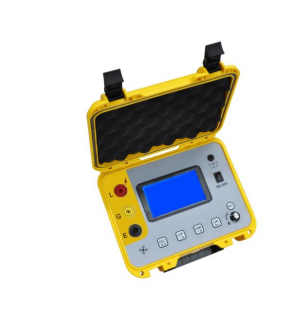

HV HIPOT GD3125 Insulation Resistance Tester (5.0kV, 2TΩ)
Rated testing voltage: 250 V, 500V, 1.0kV, 2.5kV, 5.0kV
Upper limit of measuring range: 100GΩ, 200GΩ, 500GΩ, 1TΩ, 2TΩ
Lower limit of measuring range: 0.1MΩ
Output voltage error: ±5%
Short-circuit current: Approx.3mA
Accuracy Class: 5.0
Basic error of second half measuring range: ±(5%·Rx + 1d)
Basic error of first half measuring range: ±(10%·Rx + 2d)
High voltage display error: ±(5%·Ux + 1d)
Temperature measuring error: ±0.5°C
Air humidity measuring error: ±2%RH
Power supply: 12V lithium battery
Service life of battery after one-time charging: 30 days, 10 times of DAR and 5 times of PI test for each day
Insulation resistance: > 500 MΩ (between the test line and machine case)
Voltage resistance: AC 10.0kV 50Hz 1min (between the test line and machine case)
Working temperature and humidity: 0°C ~ + 40°C < 85%RH
Storage temperature and humidity: - 20°C ~ + 50°C < 90%RH
Dimension: 274 (L) X 225(W) X 113(H) (mm)
Weight: About 4.5kg
Packing List
Main Unit: 1 set
L - terminal test connecting line (red): 1 piece
G - terminal test connecting line (yellow): 1 piece
E- terminal test connecting line (black): 1 piece
1A power adapter: 1 piece
User Manual: 1 copy
Factory test report: 1 copy
