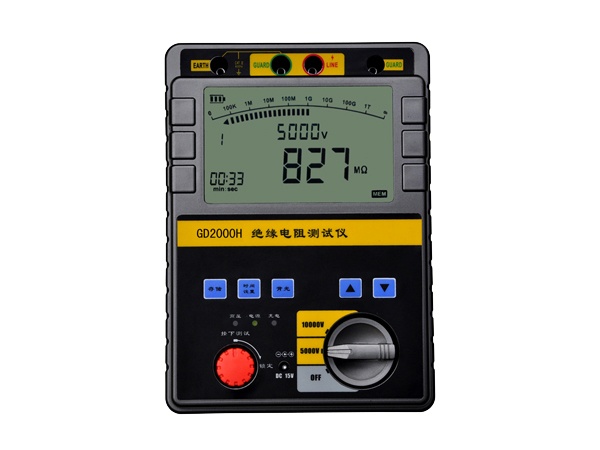

HV HIPOT GD2000H Insulation Resistance Tester (10kV DC)
Output voltage: 5kV DC, 10kV DC
Accuracy:
- Temperature: 23℃±5℃
- Insulation resistance: 5M ~ 100G ±5%; 10M ~ 200G ±5%; Other range: ±10 %
- Output voltage: 40M ~ 200G 0 ~ +10%; 80M-400GΩ 0 --+10％
Short-circuit current: ≥3.5 mA
Power supply: 8 * AA type high capacity rechargeable battery & external adapter
Working Temp.&Humidity: -10℃ -- 40℃, max relative humidity 85 %
Storage Temp.&Humidity: -20℃ -- 60℃, max relative humidity 90 %
Insulation: Max.20000MΩ when voltage between circuit and shell is 1000VDC.
Withstand voltage: Withstand 1min when voltage between circuit and shell is 3kV /50Hz AC
Dimension: 230mm*190mm*90mm (L*W*H)
Weight: 3kg
Accessories: Test leads, manual, rechargeable adapter, power cable, test report
