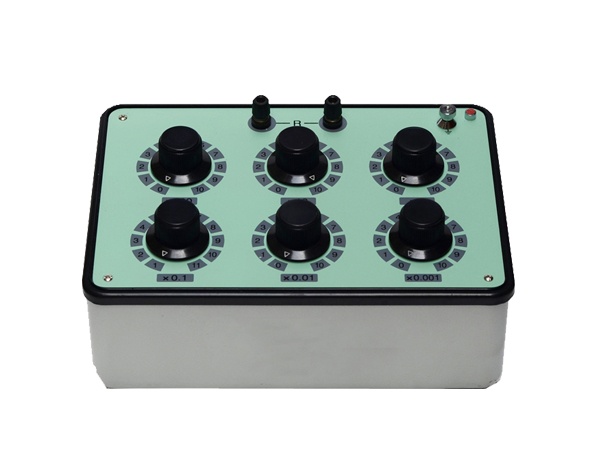

HV HIPOT GD-DZX DC Decade Resistance Box (0.1~1111.210Ω)
Minimum resistor:0.1Ω
Minimum step value: 0.001Ω
Resistance value adjustment range: 0.1~1111.210Ω.
The reference temperature and nominal temperature of the resistor shall comply with the following regulations:
• Reference temperature: 20 ± 0.5 ℃;
• Nominal temperature: 20 ± 5 ℃.
The reference humidity and nominal humidity of the resistor shall comply with the following regulations:
• Reference relative humidity: 40% to 60%;
• Nominal relative humidity: 25% to 75%.
The insulation resistance between circuit and panel is ≥500MΩ.
Between circuit and panel, can withstand a frequency of 50HZ, 2000V sine wave AC voltage, does not breakdown for 1 minute.
Dimensions: 280*200*120mm.
Weight: 1.5kg
