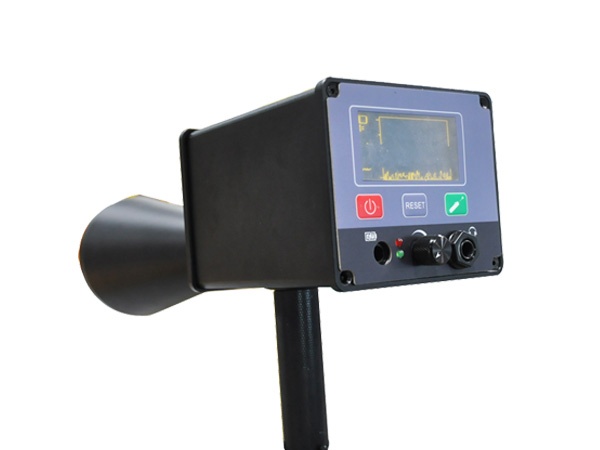

HV HIPOT GD-610B Insulator Faults ເຄື່ອງກວດຈັບ (6-500kV)
Range: 6-500kV
Host:
- Center frequency: 40KHz±2Hz
- Sensitivity: Discharge mode: pinpoint arc discharge
Discharge interval: 4mm
Voltage:
AC 10kV-distance 18M
AC 35kV- distance 25M
AC 110kV- distance 50M
AC 220-500kV- distance 50M
Operating voltage: 7.4V (lithium-ion batteries*2pcs)
Dimension: 250*125*140mm
Aluminum alloy bracket:
Laser:
- Output wave length: 650nm
- Divergency degree of light beam: 0.4mard
- Output power: ≤ 50mw
- Dimension: 16*0mm
Telescopic sight/Detachable handle/Tripod standard mounting screw hole
High frequency sensor:
- Center frequency (fo): 40kHz±2Hz
- Center capacitance (Co): 2500±20%pF
- Use temperature: -20-60℃
- Weight: 2.17kg
Headphone:
- Rated impedance (Z): 125Ω
- Frequency range: 100Hz-10kHz
- Sensitivity: (1W/1m) 60dB
Charger:
- Input voltage: AC 220V±10%
- Input frequency: 50Hz±5%
- Output DC voltage: DC 8.4V
- Current: 1A
Packing dimension of whole set: 470*340*420mm
Working temperature: -30-60℃; Humidity: (0~100) %RH
Complete packing weight: 7.18kg
