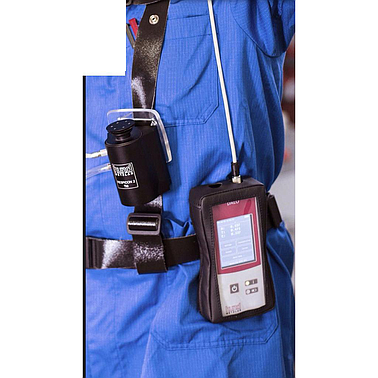

HUND Respicon TM Dust Sensor ( 0-200 mg/m³)
ຜູ້ຜະລິດ: HUND Model: Respicon TM ທີ່ມາ: Germany ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Principle of operation: Simultaneous collection of airborne particles in three size fractions according to EN 481
(inhalable, thoracic, respirable). Scattered-light photometers in each of the three stages
for time-resolved online measurements
Collected dust fractions:
Inhalable: < 100 μm
Thoracic: < 10 μm
Respirable: < 4 μm
(< 2,5 μm with optional inlet head)
Separation principle: Two-stage virtual impaction
Measurement range [mg/m³] (DEHS particles, d = 1 μm): 0 – 200
Sensitivity [mV/mg/m³]: 20
Detection limit [μg/m³] (DEHS particles, d = 1 μm): approx. 50
Filter modules: Filter cassettes for glass-fiber or membrane filters (37 mm diameter)
Mounting thread : Whitworth thread W ¼” in bottom stage
Dimensions [mm] : H x D: 110 x 60
Standards : EN 481, ISO7708, ACGIH, AIHA, MAK, TRGS, test report acc. to prEN 13205 for Respicon TM
Sampling pump:
Volume flow [l/min]: 3 ,11
Pressure drop: 4 kPa
Operation time (as specified by manufacturer): 8h
Datalogger DALO:
Initial Equipment for Respicon und Respicon TM
- Glass fibre,
- 37 mm dia, without binders, with central hole, (1 item = 50 filters),
- Recommended amount: 4 items each 50 filters
- Glass fibre,
- 37 mm dia, without binders, without central hole, (1 item = 50 filters),
- Recommended amount: 2 items each 50 filters
- Filter cartridge,
- to incorporate 37 mm glass fibre filters
Optional Accessories for Respicon und Respicon TM
- Stage flow checker (for Resicon)
- Stage flow checker (for Respicon TM and 2 TM)
- Zero-air / total volume flow test adapter
- Rotameter kit, with base, range: 0.4 - 4.0 liters/min
- Silicone tube, 2m necessary for connection of Rotameter and test adapter
- Harness belt
- Fastening clip for harness belt
- Carrying case
- Leather carrying case for Datalogger DALO
- Leather strap for Datalogger DALO
