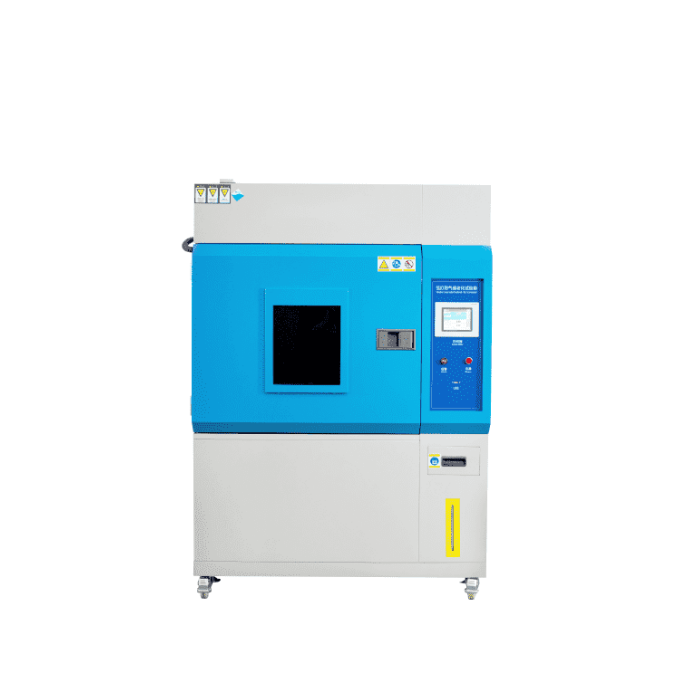

Huda HUD-E711 ຫ້ອງທົດສອບສະພາບອາກາດ Xenon

Internal Dimension (W*D*H): 600*600*800mm

External Dimension (W*D*H): 1250*1150*1850mm

Chamber Temperature: Room temperature: e+10℃～70℃

Temperature Uniformity: ±3℃

Temperature accuracy: ±0.1℃

Humidity Range: Light:20%～60%RH, Dark：30%～98%RH

Humidity fluctuation: +2，-3％RH

Irradiated intensity: 300-400NM，40～60W/m2

Xenon lamp power: 6.5KW water-cooled xenon lamp x 1pc

Turntable speed and diameter: 1～7r/min, diameter 400mm

Lamp life: About 1200h

Standard sample size: 75mm×150mm Thickness＜20mm

Filter: Daylight filter

Power: Three phase, AC380V, 50Hz

Cooling method: Water ( with one chiller)
