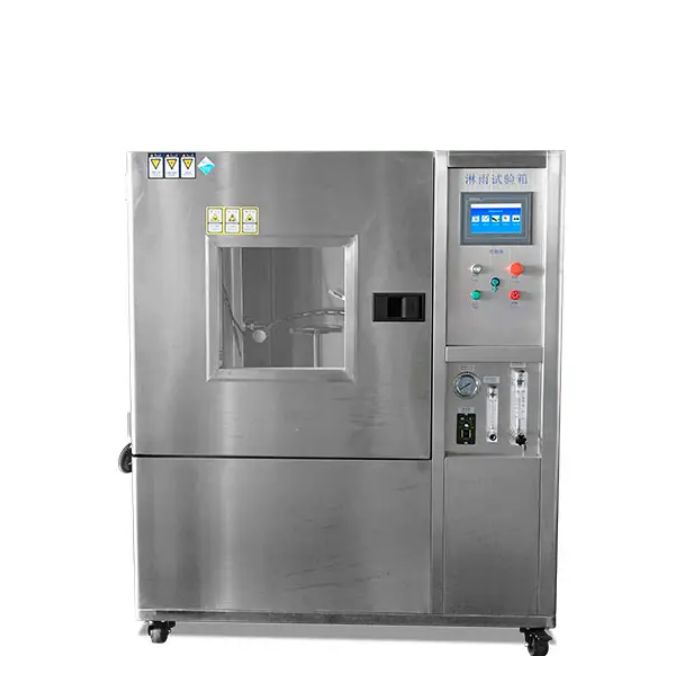

Huda HUD-E710-3 ຫ້ອງທົດລອງອາບນ້ໍາ (IPX5 & IPX6)

Internal chamber size: 800Wx800Dx800Hmm/1000Wx1000Dx1000Hmm

External chamber size: 1200Wx900Dx3300Hmm/3500Wx1250Dx1800Hmm

IP Code: IPX5/IPX6

Internal diameter of spray nozzle: 6.3mm/12.5mm

Delivery rate: 12.5l/min±5% / 100l/min±5%

Chamber material: Internal: SUS304 stainless steel, external: stainless steel

Turn plate: Φ500mm

Spray duration time: 3,10,30,9999 min(adjustable)

Operating time: 1-9999min(adjustable)

Controller: PLC touch screen

Turntable: Diameter 300mm, rotate speed 3±1R/min

Distance from nozzle to enclosure surface: Between 2.5m and 3m

Power supply source: 3-phase, 380V±10%, 50Hz (can be appointed)
