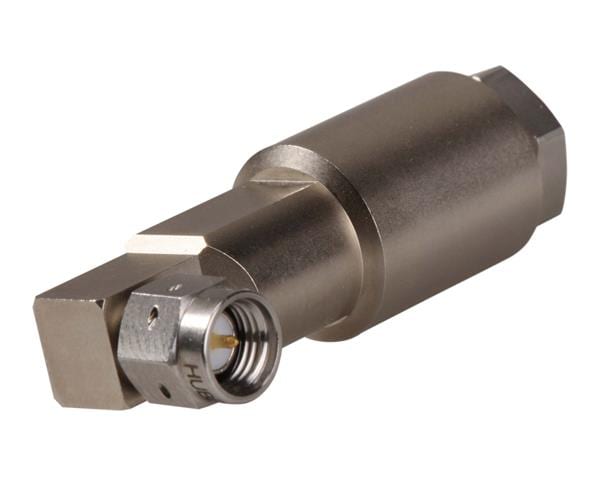

HUBER+SUHNER 16_SMA-50-6-1/12-_NE ຕົວເຊື່ອມ

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Style: Right Angle

Cable Type: EACON-6C

Body Finish: Nickel

Orientation: Right Angle

Unit Weight: 33.700 g

Contact Type: Pin (Male)

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Clamp

Coupling Mechanism: Threaded

Contact Termination: Clamp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
