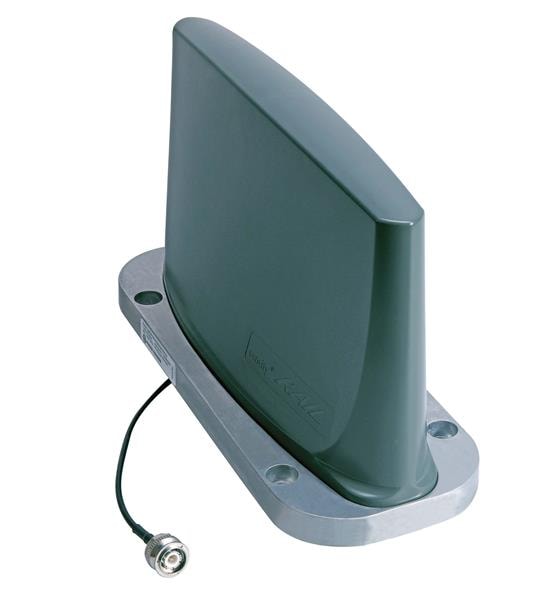

HUBER+SUHNER 1302.99.0026 ເຄື່ອງຮັບສະຫນາມສົດ SENCITY Rail PTC ພ້ອມກັບ GNSS

Gain: 1.72 dB

VSWR: 1.5, 1.8

Style: Sharkfin

Width: 154 mm

Height: 100 mm

Length: 256 mm

IP Rating: IP67, IP69

Impedance: 50 Ohms

Application: Rail, Railway Rooftop, Train Control

Unit Weight: 1.51 kg

Polarization: RHCP, Vertical

REACH - SVHC: Details

Mounting Style: Screw Mount

Number of Bands: 2 Band

Mechanical Style: Module

Maximum Frequency: 1.62 GHz

Minimum Frequency: 219.98 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: N Female / TNC Plug

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GNSS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
