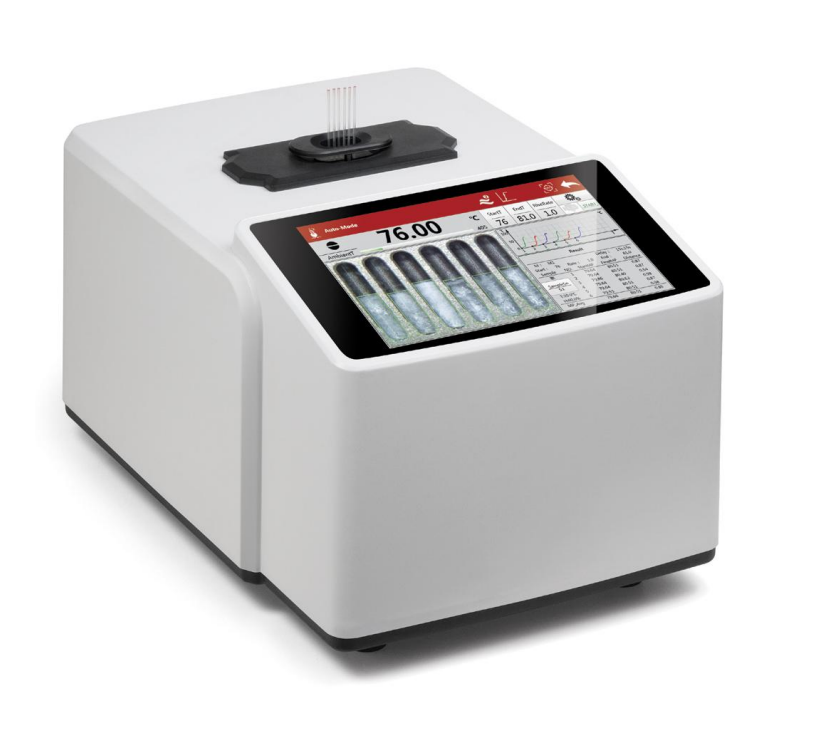

HUAZHI HMZX-1B ອຸປະກອນວິເຄາະຮູບພາບອັດຕະໂນມັດ ແລະ ວິດີໂອຈຸດລະລາຍ (~ 400℃)
Test Method: Image analysis AUTO-ROI® measure + Visual Measurement
Sample Loading Way: Capillary Tube Method
Temperature Range: Ambient ~400℃
Minimum Temperature Resolution: 0.01℃
Ramp Rate & Error: 0.1℃~20℃/min infinite speed regulation, Error ≤5%
Accuracy: ±0.2℃（﹤200℃）, ±0.4℃（≥200℃）
Reproducibility: 0.1℃（ramp rate 0.2℃/min）; 0.2℃（ramp rate 1.0℃/min）
Heating/Cooling Time: ≈5.5mins/6mins（50~400℃）
Characteristics: General Mode, Std-Sample Mode, Deep Mode, Decomposed Mode, Learning Mode, Customized Mode; 3-level filter depth
Number of Capillaries: 6pcs
Capillary Dimensions: Φ1.4mm external diameter, Φ1.0mm inner diameter, 90mm length
Fill Height: 3mm~5mm
Display: 7” True color touch tablet screen (1024×600)
Screen Display: Melting video, curve and measuring results in real time
User Management Module: Up to 64 users managed in groups (departments)
Data Center Module: Data, measuring methods, reports and logs shared or isolated by user group privilege
Preset Measurement Methods: 128 measuring methods can be built, shared and invoked
Measurement Reports: Support measuring same sample from two batches simultaneously; auto generate reports, calculate mean value and standard deviation, eliminate outliers, generate modification records, support remarks; 3-level signature (Creator, Auditor, Approver); Export Excel & PDF and print, cannot be deleted
Video Report: 1000mins recording (Optional 3000mins)
Calibration Report: Auto generate report, expiration date management, expiration reminder, PDF export
Compliance: ChP, EP, JP, FDA 21 CFR Part 11 and GMP/GLP compliant
Database: Data tracing, audit tracing, backup and restore
Calibration: 1~9 points temperature calibration (Auto + manual input)
Communication Port: USB A×2 + USB B + RS232 + Ethernet + WIFI (Optional)
Power Supply: 220±10%V AC, 50/60Hz/135W
Dimensions & Weight: 345×245×215mm; About 5kg
