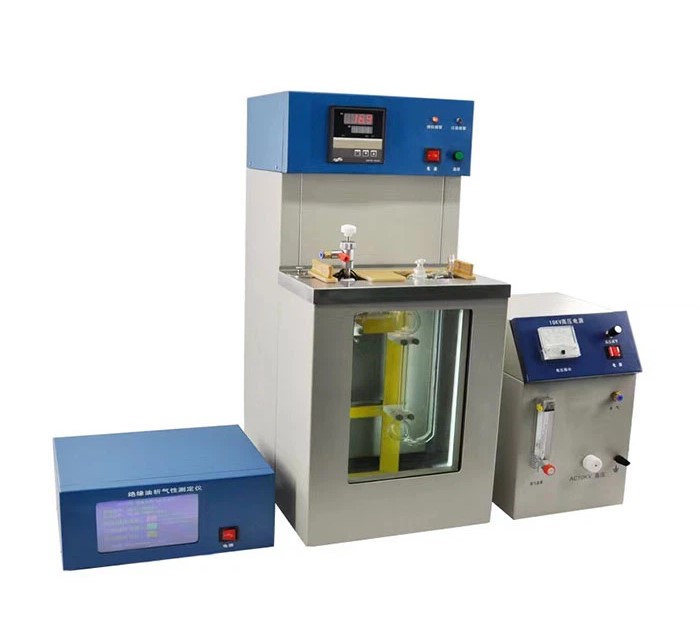

Huazheng HZZQ-2300 ເຄື່ອງທົດສອບວິວັຖນາການອາຍແກັສສນວນອັດຕະໂນມັດ (10.0KV)

Temperature: constant temperature: 80℃

Accuracy: ±0.3℃

Resolution: 0.1℃

Test voltage: Voltage: 10.0KV

Accuracy: ±0.2KV

Resolution: 0.4KV

Time measurement: timing: 5min; 10min; 50min; 60min; 120min

Accuracy: ±0.2

Resolution: 1S

Measurement: Range: 10mL

Accuracy: 0.2%

Resolution: 0.1mL

Heater: 800W

Stirring motor: 25W

Stirring speed: 1200 rpm

Power supply voltage: AC220V±10% 50(60)Hz±1Hz

Dimensions: Main control chassis: 380×150×250(mm) (W×H×D)

Detection chassis: 380 × 680 × 405 (mm) (width × height × depth)

High voltage case: 230×380×290(mm)(W×H×D)

Conversion chassis: 210×100×200(mm)(W×H×D)

Total weight: 36Kg

Use environment: Temperature: 25℃±10℃

Relative humidity: <85%
