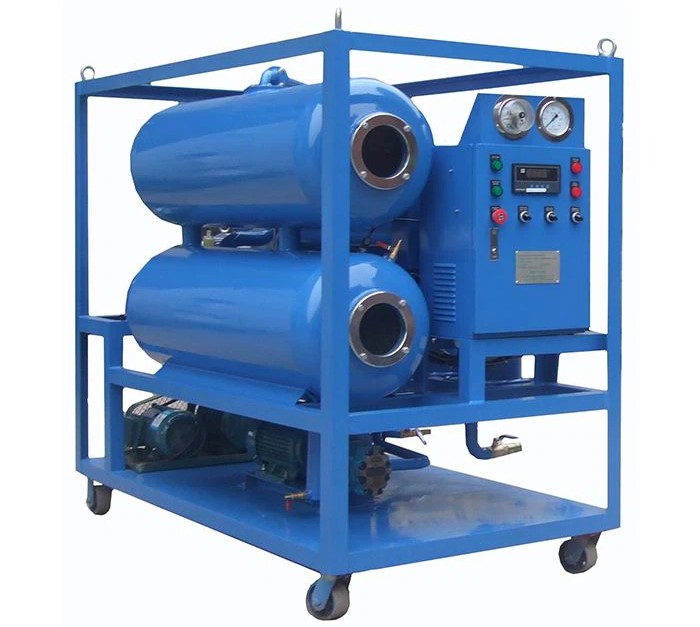

Huazheng HZTY-100 ເຄື່ອງຟອກນໍ້າມັນ turbine ສູນຍາກາດ (6000 l/h)

Processing capacity: L/H: 6000

Working vacuum: Mpa: -0.070～-0.099

Working pressure: Mpa: ≤0.5

Water content: PPM: ≤20

Demulsification degree: Min: ≤15

Cleanliness: NAS: 6

Filtering precision: µm: ≤1

Continuous working time: H: ≥200

Fault free working time: H: ≥6000

Operating temperature: ℃: 40～70

Power Supply: ～50HZ 380V (according to user requirements)

Working noise: dB: 65

Heating power: KW: 60

Total power: KW: 66

Oil inlet pipe diameter:

Oil inlet mm: 44

Oil outlet mm: 44

Weight: kg: 650

Dimension

Length mm: 1650

Width mm: 1200

Height mm: 1800
