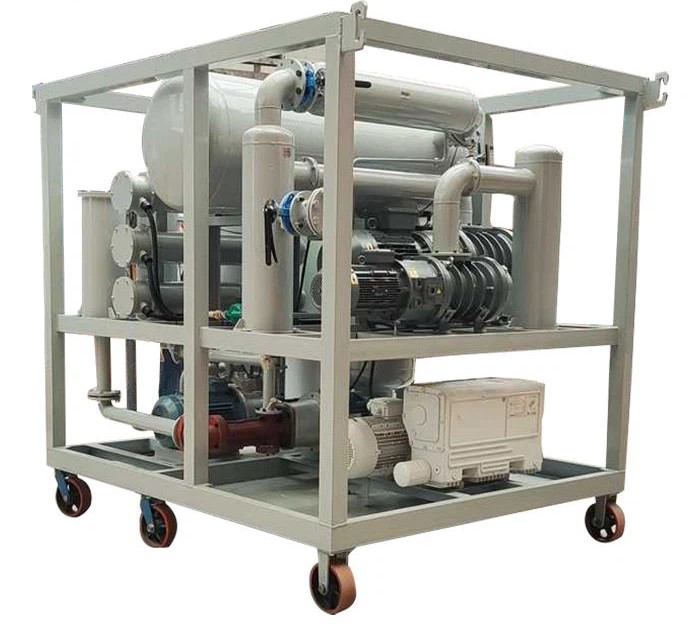

Huazheng HZLY-300A Double Stage Vacuum Oil Purification (18000L/h)
Product technical parameters
Nominal flow: 18000L/h
Net oil capacity: 300L/min
Pumping rate: 2160M³/h
Working pressure: ≤0.4Mpa
Working oil temperature: 40～70℃
Power supply: 50Hz380V three-phase three-wire
Heating power: 192Kw (adjustable)
Total power rate: 209kw
Operating noise: ≤75dB(A)
Inlet/outlet pipe diameter: DN65
Dimensions: 245×195×225cm
Equipment weight: 2850Kg
Product net oil index (new oil)
Oil to be processed
Breakdown voltage: >30kV (spherical pole);
Water content: ≤50ppm;
Air content: ≤10% (volume ratio);
After multiple processes
Breakdown voltage: >75kV (spherical pole);
Water content: ≤5ppm;
Air content: ≤0.1% (volume ratio);
Acetylene content: 0
Filter accuracy 1μm
