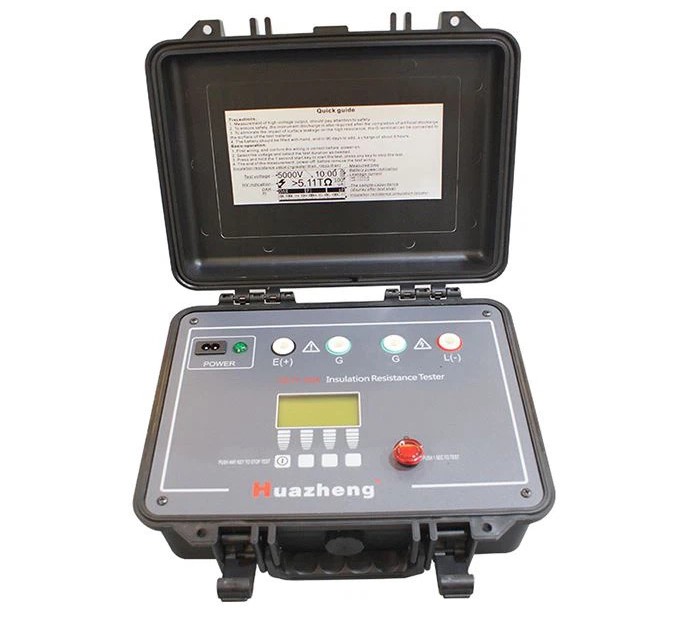

Huazheng HZJY-25K Insulation Resistance Tester
Safety specifications
IEC 61010-1 CAT.IV 600V Pollution degree 2
IEC 61326 EMC specification: electrical equipment for testing, control and inspection
IEC60529 IP64 (outer box closed state)
AC power supply: 220V±10%, 50/60 HZ, 25 VA
Battery power supply: 16.8V lithium ion battery
Battery life time: 25000V@no-load, about 4 hours
Dimensions (length x width x height): 37cm x 27cm x 17cm
Weight: 3.5kg
Test voltage accuracy: 100% to 110% of the nominal value
Voltage measurement accuracy: 5%+10V
Current test range: 10mA
Current measurement accuracy: 5%+0.2nA
Short-circuit current: 2 to 7mA, adjustable output (10mA short-circuit current can becustomized)
Capacitance test range: 20uF
Capacitance test accuracy: 15%+0.03uF
Insulation resistance test range and accuracy (temperature: 23±5ºC, relative temperature: 45-75%RH)
