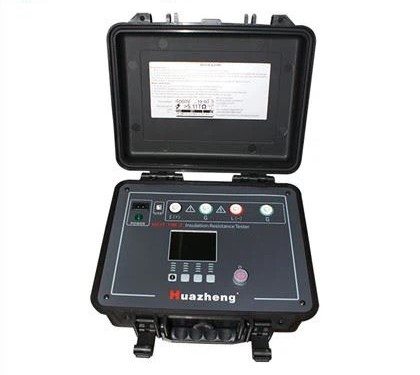

Huazheng HZJY-10K-Z Insulation Resistance Tester
Safety specifications
IEC 61010-1 cat.iv 600V pollution degree 2
IEC 61326 EMC specification: electrical equipment for testing, control and inspection
IEC60529 IP64 (closed state of outer box)
AC power supply: 120V ± 10%, 50 / 60 Hz, 20 VA
Battery power supply: 16.8v lithium ion battery
Battery life: 5000V@100M , about 6 hours
Dimensions (L x W x H): 32cm x 27cm x 14cm
Weight: 3.8kg
Output voltage accuracy: 100% to 110% of nominal value
Output voltage monitoring accuracy: ± 5% ± 10V
Voltage measurement range: AC: 30-600v (50Hz / 60Hz), DC: 30-600v
Voltage measurement accuracy: ± 2% ± 3dgt
Current test range: 10mA
Current measurement accuracy: 5% + 0.2na
Short circuit current: 2 to 5mA, adjustable output
Capacitance test range: 25uf
Capacitance test accuracy: ± 10% ± 0.03uf
Discharge rate of capacitor test object: from 5000v to 10V, 1s / µ F
Protection: 2% error, shielding 500K Ω leakage resistance under 100m Ω load
Analog display range: 100k Ω to 10t Ω
Digital display range: 10K Ω to 20t Ω
Insulation alarm: 0.01M Ω to 9999.99m Ω
Insulation resistance test range and accuracy (temperature: 23 ± 5 º C, relative temperature: 45 – 75% RH)
