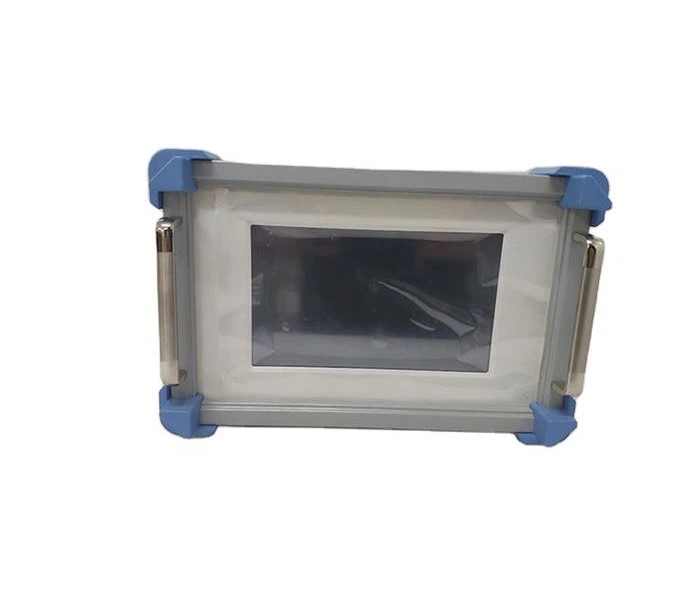

Huazheng HZJF-9021 ເຄື່ອງກວດຈັບການໄຫຼບາງຊ່ອງສອງຊ່ອງ (300kHz,250uF, 2CH)
Channel: 2 electrical signal interfaces, one external synchronization interface
Sampling accuracy: 12bit
Range switching: 60dB、50dB、40dB、30dB、20dB、10dB、0dB、-10dB
Frequency range: 80k-200kHz、40k-300kHz
Nonlinear error of this range: 5%
Measuring Range: 0.1pC~100000pC
Sensitivity: 0.1pC
Capacitance range: 6pF～250µF
Testing power supply frequency range: 50～400Hz
Display
Display: 7” TFT Touch screen
Resolution: 800×480
Storage
Physical storage: 256MB DDR2 for running memory
SD card storage: Standard 16G card, can be upgraded to 32G, used to store test recordsand test data
Port
RS232: Used for synchronous transmission interface with PC
USB: External mouse and keyboard, and external mobile storage device
Power supply: AC 220V
Electrical signal port: 2-channels BNC interface for signal input
SMAport: External synchronization interface
SD card slot: Can insert SD card up to 32G
Internet access: Extensible
Grounding Button: Used for grounding
General instructions
CPU: Basic frequency 533MHz
System: WINCE6.0
Environment temperature: -20℃ to 45℃
Storage environment temperature: -20℃ to 60℃
Volume: 350mm × 245mm × 175mm
Weight: 5.8kg
