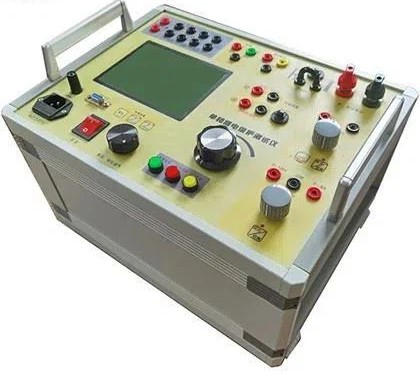

Huazheng HZJB-Y ຕົວທົດສອບການປົກປ້ອງ Relay ໄລຍະດຽວ (100A, 250VAC, 300VDC)
Rated input power: AC: 220V±10%·1000VA·50Hz
AC Output
Range(A): 0~10
No-load Voltage (Minimum)V: 90
Full-load Voltage (Minimum)V: 80
Full-load Current (Maximum)A: 10
Range(A): 0~40
No-load Voltage (Minimum)V: 25
Full-load Voltage (Minimum)V: 22
Full-load Current (Maximum)A: 40
Range(A): 0~100
No-load Voltage (Minimum)V: 10
Full-load Voltage (Minimum)V: ＜8
Full-load Current (Maximum)A: 150
Range(V): 0~250(AC)
No-load Voltage (Minimum)V: 250
Full-load Voltage (Minimum)V: 240
Full-load Current (Maximum)A: 3
Range(V): 0~300(DC)
No-load Voltage (Minimum)V: 320
Full-load Voltage (Minimum)V: 250
Full-load Current (Maximum)A: 3
DC auxiliary Output
Range V: 0~110
Voltage V: 120
Maximum current A: 0.5
Range V: 110~220
Voltage V: 220
Maximum current A: 0.5
AC Auxiliary output
Range: 0～120V
Voltage V: 120
Max current A: 0.4
Range: 0～8A
Voltage V: 5
Max current A: 8
Stopwatch
Range：0.0000～999999S, Resolution：0.1mS, precision：±5 characters
With contact and potential input, maximum input voltage: DC 250V
Ammeter
Range：Internal：0.000～150.0A（AC or DC）
External：0.000～6.000A（AC or DC）
precision：0.5%
Measurement method：AC：True RMS DC：Average value
Voltmeter
Range：0.0～600.0V（AC or DC） precision：0.5%
Measurement method：AC：True RMS DC：Average value
Resistors and capacitors
Resistance：0.5Ω～2.5kΩ, Capacitor：10uF，maximum voltage AC 450V
Split/close auxiliary contacts
Maximum current：1A, Maximum voltage：AC250V or DC120V
Use environment: temperature-10～40℃, relative humidity less than 80%
Volume:360 mm×270 mm×250 mm
Weight: 18kg
