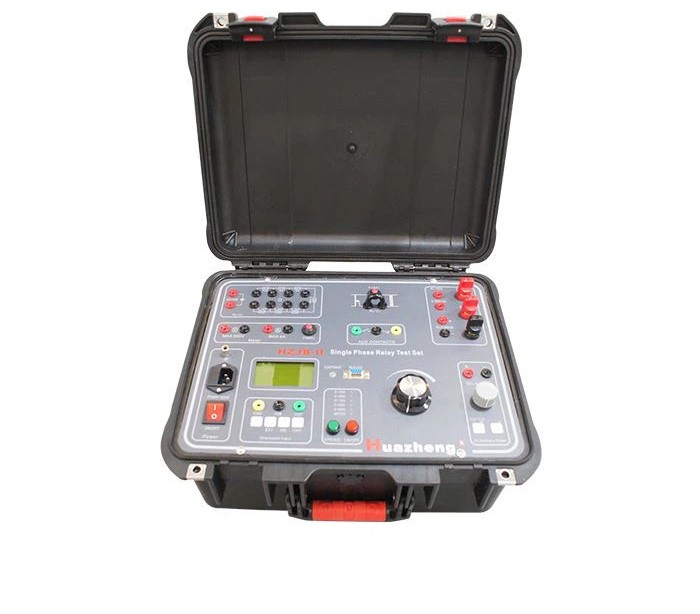

Huazheng HZJB-II ຕົວທົດສອບການປົກປ້ອງ Relay ໄລຍະດຽວ (100A, 250VAC, 300VDC)
1. Rated input power: AC: 220V±10%·1000VA·50Hz
2. AC Output
Range(A): 0~10
No-load Voltage (Minimum)V: 90
Full-load Voltage (Minimum)V: 80
Full-load Current (Maximum)A: 10
Range(A): 0~40
No-load Voltage (Minimum)V: 25
Full-load Voltage (Minimum)V: 22
Full-load Current (Maximum)A: 40
Range(A): 0~100
No-load Voltage (Minimum)V: 10
Full-load Voltage (Minimum)V: ＜8
Full-load Current (Maximum)A: 150
Range(V): 0~250(AC)
No-load Voltage (Minimum)V: 250
Full-load Voltage (Minimum)V: 240
Full-load Current (Maximum)A: 3
Range(V): 0~300(DC)
No-load Voltage (Minimum)V: 320
Full-load Voltage (Minimum)V: 250
Full-load Current (Maximum)A: 3
3. DC auxiliary Output
Range V: 0~110
Voltage V: 120
Maximum current A: 0.5
Range V: 110~220
Voltage V: 220
Maximum current A: 0.5
4. Stopwatch:
Range: 0.0000~999999S,Resolution: 0.1mS, Accuracy: ±5
With electrical contacts and potential input, the maximum input voltage: DC 250V
5. Ammeter:
Range: internal: 0.000~150.0A;
External: 0.000~6.000A(AC or DC)
Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average
6. Voltmeter:
Range: 0.0~600.0V(AC OR DC);
Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average
7. Resistors and Capacitors:
Resistance: 0.5 ohm to 2.5k ohm
Capacitor: 10uF, maximum voltage AC 450V
8. Division / combination of auxiliary contacts
Maximum current: 1A, Maximum voltage: AC250V or DC120V
9. Using Environment: Temperature: -10 ~ 40 ℃, Relative humidity must less than 80%
10. Volume: 320mm×260mm×230mm
11. Weight: 16kg
