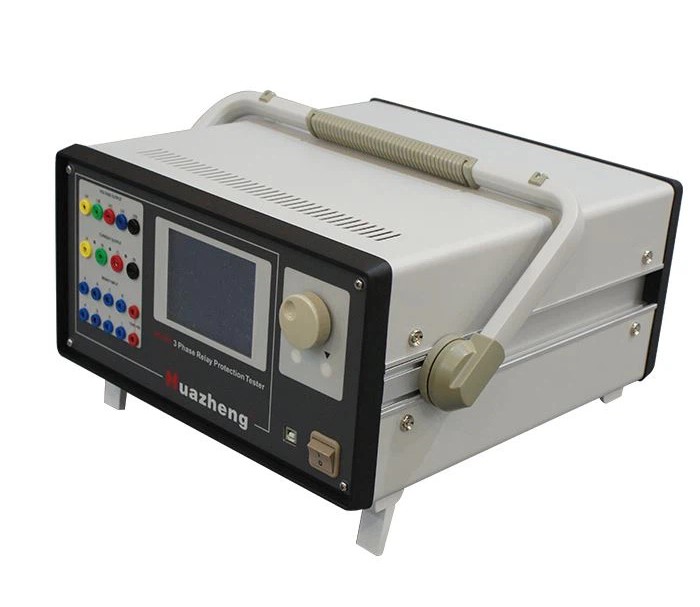

Huazheng HZJB-I 3 Phase Relay Protection Tester (40AAC, 10ADC, 120VAC, 160VDC)
AC current output:
Phase current output (effective value): 0~40A, Output Precision 0.2 degree
3 phase parallel current output (effective value): 0~120A
A Long-time Phase current: 10A
Maximum output power of Phase current: 450VA
Maximum output power of 3 parallel current: 900VA
Maximum Permitted work time of 3 parallel current: 10S
Frequency range ( fundamental): 20~1000Hz
Harmonic time: 2~20
DC current output:
Current output: 0～±10A / phase, 0～±30A/ 3 parallel
Output Precision: 0.5 degree
AC voltage output:
Phase voltage output (effective value): 0~120V Output Precision 0.2 degree
Line voltage output (effective value): 0~240V
Phase voltage / Line phase output power: 80VA / 100VA
Frequency range (fundamental): 20~1000Hz
Harmonic time: 1~20
DC voltage output:
Phase voltage output range: 0～±160V Output Precision 0.5 degree
Line voltage output range: 0～±320V
Phase voltage / Line phase output power: 70VA / 140VA
10 path digital input and 8 path digital output
Time measuring range: 0.1ms ～ 9999s ，accuracy of measurement ＜0.1ms
