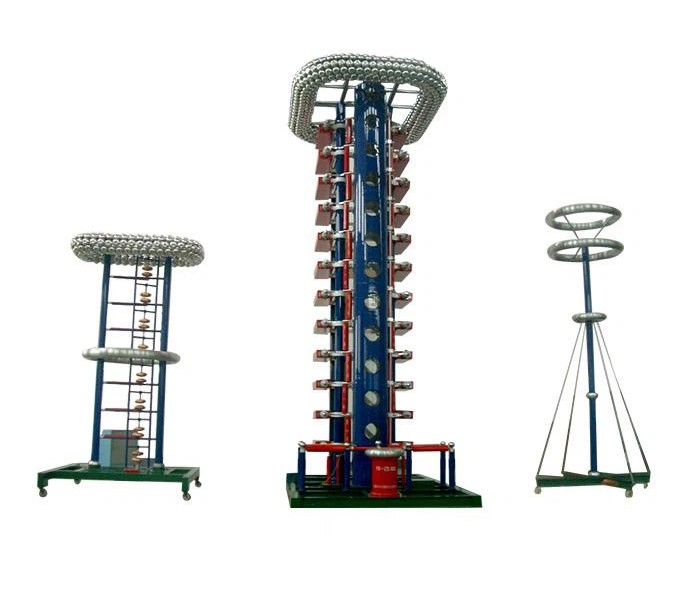

Huazheng HZCJ-3000/450 ອຸປະກອນສ້າງແຮງດັນໄຟຟ້າແຮງດັນ (±3000kV)
Nominal voltage: ±3000kV
Rated voltage: ±200kV
Nominal energy:450 kJ
Channel number: 2 Channel
Sampling rate: 100MS/s
Amplitude resolution: 9Bits
The amplitude error: <1%
The display screen: 15”LCD,1024×768 32-bit true color
Upper machine: The integrated workstation with Intel P4 2.4GHzprocessor as the core is the platform
Lower computer control unit: MCU processor based on 51 kernel is the main control unit
Intercept ignition control pulse delay: Accuracy of 0.1 us.
Electrical strength of isolation unit: >2500V/RMS,1min
AD sampling resolution of lower computer: 9Bit
AD sampling nonlinear error of lower computer: <1LSB
AD sampling time of lower computer: <10us
AD sampling channel of lower computer: 8
Lower computer digital channel: 32input,32output
