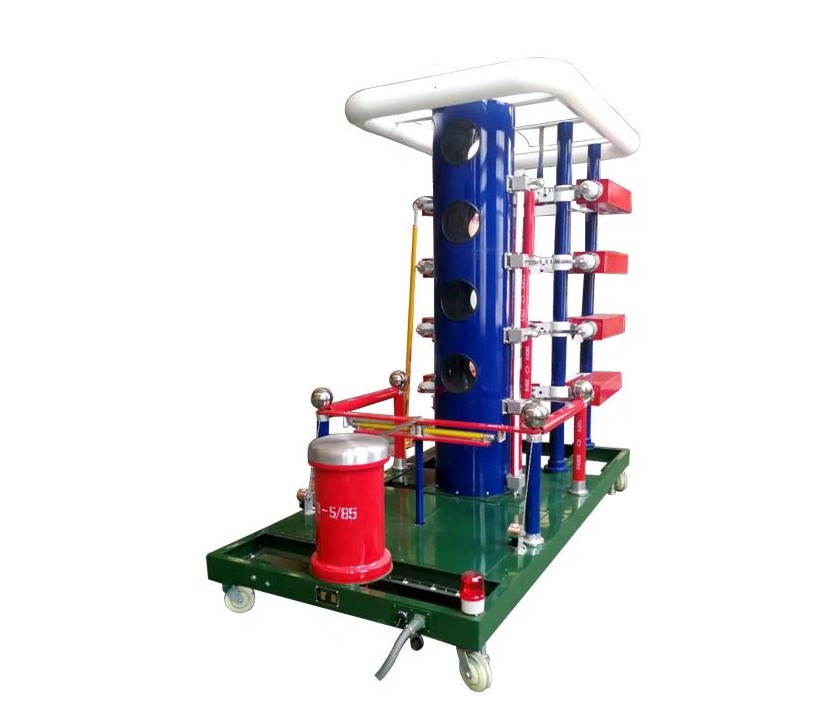

Nominal voltage: ±200kV
Rated voltage: ±100kV
Nominal energy: 10kJ
The total impact capacitance: 0.5 uF (single pulse capacitor 2 uF / 100 kV, totally 2 pcs).
Total number of levels: 2
standard waveform parameters:
Standard lightning impulse voltage full wave, 1.2/50svoltage utilization factor >85% (more than 90% when no load 300PF); The impulse voltage waveform parameters and their deviations are in line with the requirements of the national GB311 and GB16927 standards. The lowest output voltage is greater than 10% of the nominal voltage.
Duration of use: Above 70% of rated voltage, it can be continuously operated every 120 seconds after charging and discharging. It can be continuously operated after charging and discharging every 60 seconds under 70% of rated voltage.
