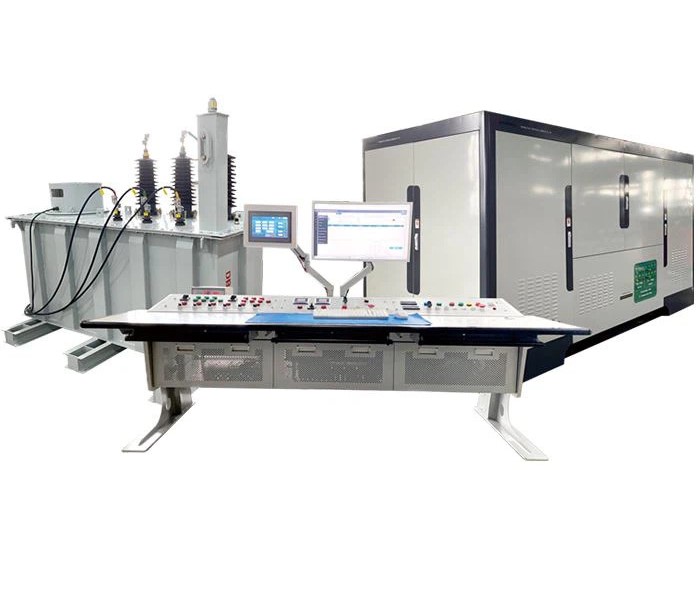

Huazheng HZBZ-IV Bench ການທົດສອບການຫັນເປັນທີ່ສົມບູນແບບອັດຕະໂນມັດ
Fully automatic variable ratio tester: GD-700
Power analyzer: GD-300C
Dual channel DC resistance tester: GD200-20A
Insulation resistance tester: Common 3125A
Temperature inspector: 8 temperature passageway
PLC control device: SIEMENS S7-200
Test project distribution device: 300A
High voltage precision current mutual inductor: 200-100-50-20-10-5A/5A
Voltage level：22/√3KV
Precision grade：0.1
High voltage precision voltage mutual inductor: (22.0-11.0-6.6-3.6)/√3/0.1KV
Voltage level：22/√3KV
Precision grade：0.1
Three-phase induction voltage regulator: 200KVA（10-650V）
Intermediate transformer: 200KVA
Frequency doubling generator: 30KW/150HZ、800V
High voltage test transformer: 20KVA/100KV
Test transformer console: 20KVA（including electric voltage regulator）
Protection resistance: 100KV
Accessories
Special high voltage discharge rod
High voltage test line
Grounding wire and plug
Cable and wire:
Voltage regulator input: 100mm23*10M
Voltage regulator output: 50mm23*10M
Intermediate variable input: 100mm23*10M
Intermediate variable output: 50mm23*10M（high voltage line）
Frequency doubling unit input: 16mm23*10M
Excitation regulation: 10mm23*10M
Frequency doubling unit output: 10mm23*10M
Test transformer input: 10mm22*10M
Test line: 35mm23*10M（high pressure line）
