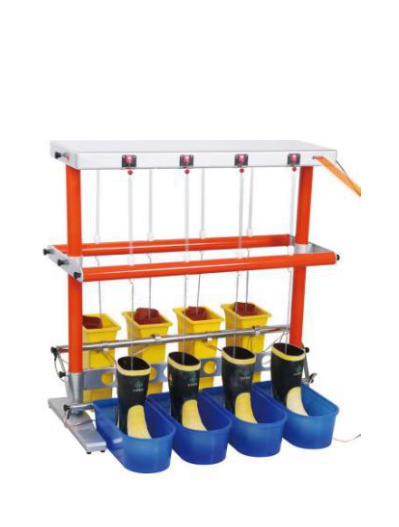

Huazheng HZAQ-Y1 ເຄື່ອງທົດສອບເກີບສນວນອັດຕະໂນມັດ (ຖົງມື) (50 kV)

Test station 8

Leakage current range 25.0mA

Leakage current measurement error <1 % ± 1 word

Leakage current resolution 0.1 mA

Maximum working voltage: 50kv (4-stage insulated boots withstand voltage test)

Steel ball (4mm): 20kg

1. At the same time 8 insulated boots or insulated gloves test, respectively, the leakage current measurement.

2. Patented infrared communication technology, the console and high-voltage system completely isolated, to ensure the safety of test personnel.

3. With a dedicated grounding container, easy to operate.

4. Each test have high-pressure breaking mechanism, when any way breakdown, the road test will automatically from the high pressure, does not affect the test.

5. With over-voltage, over-current protection
