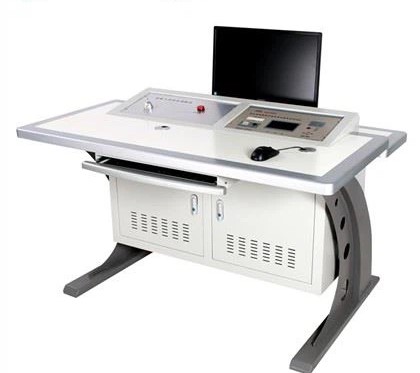

Huazheng HZAQ-KS Glove Tester Desk ການຄວບຄຸມ (100KV)
Rated output voltage:100kV(Insulation boots, insulated gloves, insulated rods, insulation pad test)
Rated capacity:10kVA
Output voltage range:100.0 kV（250V）
Voltage measurement error:＜±（0.5 %U+0.02%Umax）,Where U is the indication value and Umax is the upper limit value of the range.
Input current process:50.0A
Current measurement error:<±（0.5%I+0.02%Imax）, Where I is the indication value and Imax is the upper limit value of the range
Divider:
Voltage divider ratio:100/0.1（kV）
Variable-ratio error of voltage divider:1.5%
Insulating gloves test bench:
Test position: 8
Leakage current path:25.0mA
Leakage current measurement error:±(1%I+2 words)
Leakage current resolution:0.1 mA
Insulation Rod Test bench:
Test voltage:100kV
Test stations: 8
Insulation rod support height:1.2 M
Range of regulation:300 ~ 1030（mm）
Insulation pad test bench:
Rated voltage:50kV
Test bed area:1000*1000( mm )
Electrode area:800*800（mm）
