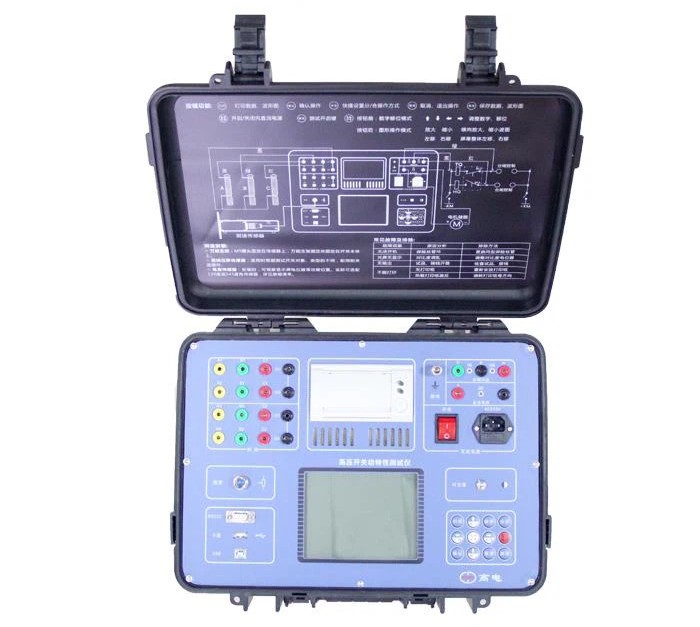

Huazheng HZ-8009 ເຄື່ອງກວດຕັດວົງຈອນ
Timing Part
Main Contact, Aux Contact
Recording length: 1ms～200s
Time resolution: 0.01ms～20ms(Depend on recording time length)
Time accuracy: ±0.1%reading±1Lsb
Graphite Contact, BSG test method
Recording length: 1s
Time resolution: 0.1ms
Time accuracy: ±0.2%reading±1Lsb
PIR Contact
PIR resistance range: 50Ω～5000Ω
PIR resistance resolution: 0.1Ω
PIR resistance accuracy: ±5%reading±0.5Ω
Stroke Part
Stroke range: 0～1000mm
Stroke resolution: 0.1mm
Stroke accuracy: ±0.5%reading±1Lsb
Velocity Part
Velocity range: 0～20.0m/s
Velocity resolution: 0.01m/s
Coil Current Part
Current range: 0～20A
Current resolution: 0.001A
Voltage Source Part
Voltage range: 30～250V
Max power: 5kW
Power Supply Part
Main unit supply: 220V±10% AC , 50Hz±10%
Environment Part
Operating temperature: -10℃～55℃
Storage temperature: -30℃～70℃
Relative humidity: 5~95% ,non-condensing
Altitude: less than 2000m
Dimensions
Main unit dimensions: 472(W)*365(D)*210(H)mm
Weight
Main Unit weight: 10.5 kg
