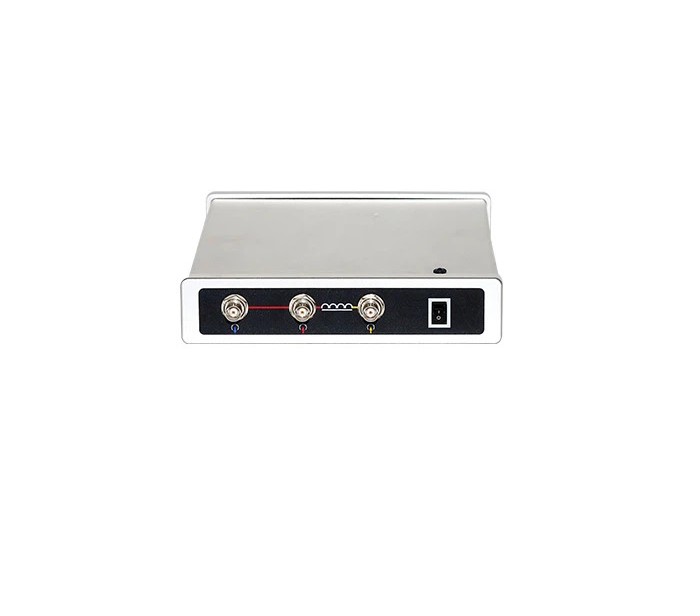

Huazheng HZ-600H Transformer Winding Deformation ອຸປະກອນກວດຈັບ

Measurement speed: 1 minute to 2 minutes for single-phase winding

Output voltage: Vpp-25V automatically adjusted during the test

Output impedance: 50Ω

Input impedance: 1MΩ (response channel built-in 50Ω matching resistor)

Sweep frequency range: 10Hz-30MHz

Frequency accuracy: 0.001%

Sweep mode: linear or logarithmic, frequency sweep and number of points can be set arbitrarily

Curve display: amplitude-frequency curve

Wide measurement dynamic range: -100dB～20dB

Power supply voltage: AC220V±10%, external power adapter, host power supply: DC12V
