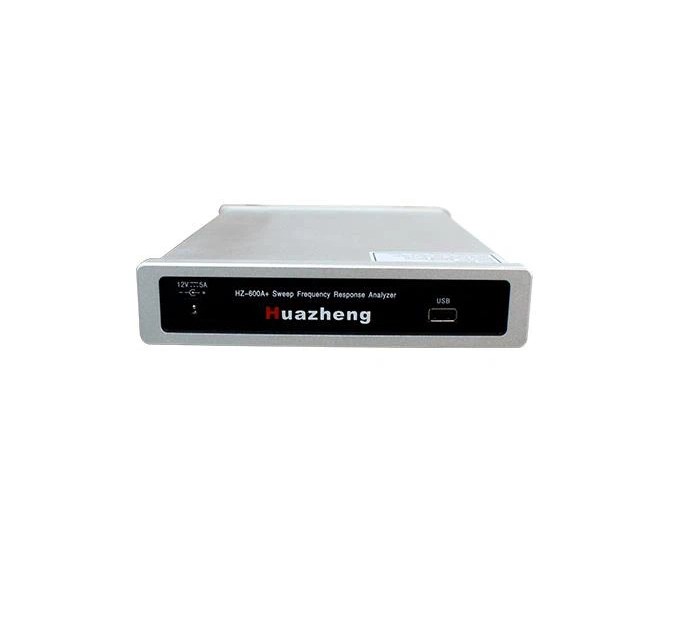

Huazheng HZ-600A+ Sweep Frequency Response Analyzer (100Hz-2 MHz)
Measuring speed: 1 min- 2 min for single-phase winding
Output voltage: Vpp-25V, adjusting automatically in test
Output impedance: 50Ω
Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)
Frequency scan scope: 100Hz-2MHz (10Hz-2MHz, optional)
Frequency accuracy: 0.001%
Frequency scan manner: linear or logarithmic, frequency sacn interval and number of sweep points are freely settable
Curve display: amplitude-frequency curve (phase-frequency curve, optional)
Width of measuring dynamic range: -100dB~20dB
Supply voltage: AC100-240V 50/60Hz (use DC12V Adapater recommend)
