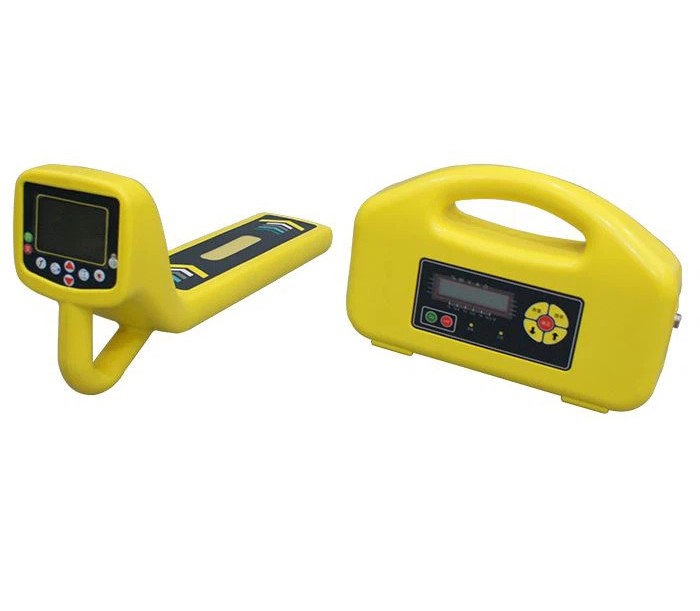

Huazheng HZ-4000D ຕົວຕັ້ງສາຍເຄເບີ້ນໃຕ້ດິນອັດສະລິຍະ
Receiver
Signal input mode: Built-in clamp input, Internal receiving loop, 1k Mini Sensor, 8k Mini Sensor, A Frame
Receive frequency:
Active frequencies: 500Hz, 1kHz, 8kHz, 33kHz, 66kHz,93kHz
Passive frequencies: power frequency, radio frequency
Clamp intelligent frequency discrimination: 500Hz.1kHz compound frequency
Clamp current measurement frequencies: 500Hz,1kHz,8kHz
Sensor frequencies: 1kHz, 8kHz
Grounding fault locate frequencies: 8kHz compound frequency
Pipe detection mode:
Intelligent Peak Method (Wide): Suitable for active detection.
Peak Method: Suitable for passive detection.
Narrow Method.
Null Method.
Cable Identification mode:
Clamp intelligent identification
Mini sensor identification
Clamp current measurement
HMI: 320x240 dots LCD
Internal battery: Lithium cell battery, 14.8V，7Ah
Batter charger:
Input: AC100～240V，50／60Hz
Output: DC 8.4V，2A/3A
Dime:700mm*270mm*120mm
Weight: 3.5kgs
Working environment
Temp: -10℃~40℃
Humidity:5-90%RH
Elevation: <4500m
Transmitter
Output mode
Direct connecting output
Clamp coupling output
Radiation output
Output frequency
Pipe detecting frequencies: 500Hz,1kHz,8kHz,33kHz,66kHz,93kHz
Fault locating: 8Hz ULF compound frequency
Output power
500Hz, 1kHz, 8kHz, 33kHz, and fault locating frequencies:Max 10W, four grands adjustable, 2.5W、5W、7.5W、10W
66k,93kHz:1W
Output voltage: Max.200v(AC peak value) automatic accordingload
Impedance matching and short protecting: Automatic
HMI: 128x64 dots LCD
Internal battery: Lithium cell battery, 14.8V，7Ah
External source: Car power voltage 12V,DC
Batter charger
Input AC100～240V，50／60Hz
Output DC 16.8V，2A/3A
Dime.: 275mm*220mm*100mm
Weight: 2.4kgs
Working environment
Temp.: -10 ℃~40 ℃
Humidity: 5-90%RH
Elevation: <4500m
