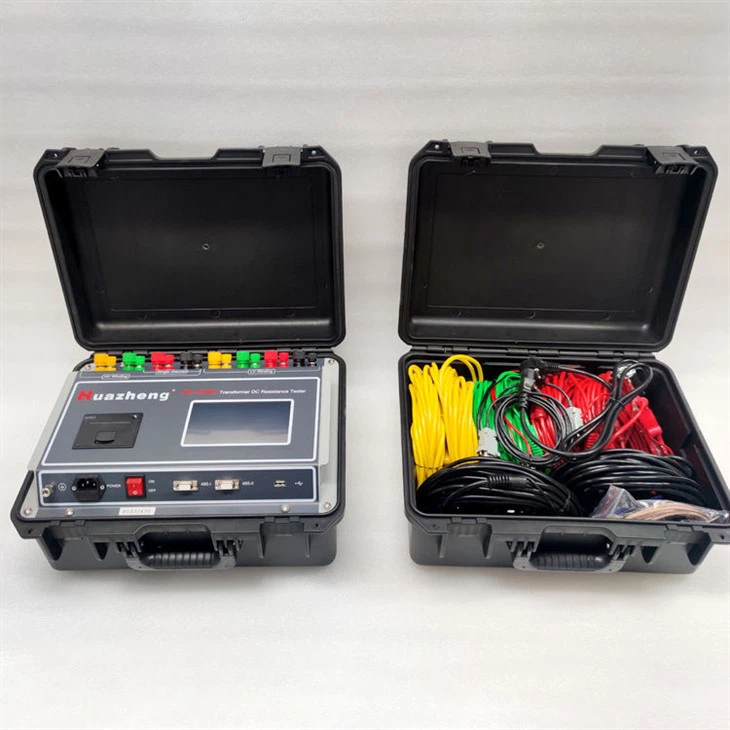

Huazheng HZ-3340D Transformer Winding Resistance Tester (20mA, 20kΩ)

Output current: automatic, 40A, 20A, 10A, 5A, 2A, 1A, 200mA, 100mA, 20mA

Range:

Automatic (0.1-40A) 0 - 200Ω (three-phase simultaneous measurement 0 - 120Ω)

40A 0 – 0.5Ω (three-phase simultaneous measurement 0 – 0.3Ω)

20A 0.0005 – 1.0Ω (three-phase simultaneous measurement0.001–0.6Ω)

10A 0.001 – 2.0Ω (three-phase simultaneous measurement0.002–1.2Ω)

5A 0.002 – 4.0Ω (three-phase simultaneous measurement0.005–2.5Ω)

2A 0.005 – 10Ω (three-phase simultaneous measurement0.01 – 6.0Ω)

1A 0.01 – 20Ω (three-phase simultaneous measurement0.02 - 12Ω)

200m A 0.1 – 100Ω (three-phase simultaneous measurement0.1 - 60Ω)

100m A 0.5 – 200Ω (three-phase simultaneous measurement0.5 - 120Ω)

20m A 10 – 20kΩ only single-phase test)

Accuracy: 0.2%±0.1μΩ

Minimum resolution: 0.01μΩ

Working temperature: -20~ 40℃

Ambient humidity: ≤80%RH, no dewing

Working power supply: AC: AC220V±10%, 50Hz±1Hz

Volume: length 420mm× width 320mm× height 200mm

Net weight: 14.8kg
